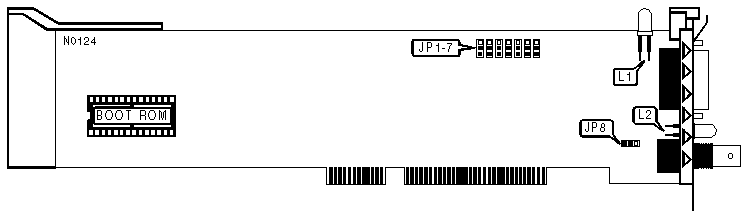

TIARA COMPUTER SYSTEMS, INC.
LanCard E/II
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
CABLE TYPE | |
|
Type |
JP1 - JP7 |
|
RG58A/U 50ohm coaxial |
Pins 1 & 2 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 closed |
|
CABLE LENGTH | ||
|
Segment Length |
Max # of Nodes per Segment |
JP8 |
|
984 feet |
100 |
Pins 1 & 2 closed |
|
607 feet |
30 |
Pins 2 & 3 closed |
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
L1 |
On |
Power on |
|
L1 |
Off |
Power off |
|
L2 |
Blinking |
Data is being transmitted/received |
|
L2 |
On |
Card is transmittting continuously (jabber) |
|
Note:LED L1 will remain off if cable type is RG58A/U 50ohm coaxial. | ||
