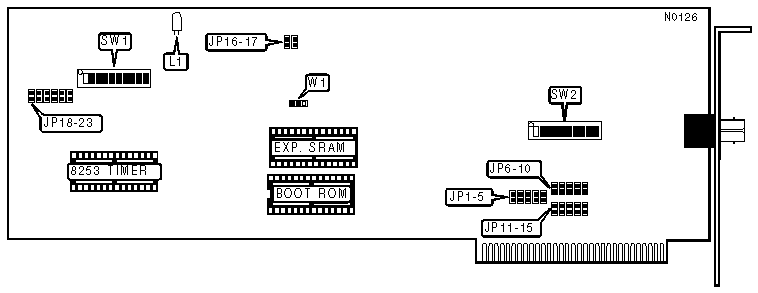

TIARA COMPUTER SYSTEMS, INC.
LanCard/A FO
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
200µs |
|
Boot ROM |
Available |
|
NODE ADDRESS |
||||||||
|
Node |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
2 |
On |
On |
On |
On |
On |
On |
Off |
On |
|
3 |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
4 |
On |
On |
On |
On |
On |
Off |
On |
On |
|
251 |
Off |
Off |
Off |
Off |
Off |
On |
Off |
Off |
|
252 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
253 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
254 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
255 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, off=1) |
||||||||
|
DIAGNOSTIC LED(S) |
||
|
LED |
Status |
Condition |
|
L1 |
On |
Card is passing the token |
|
L1 |
Blinking |
Card is reconfiguring |
|
L1 |
Off |
Card is resetting or inoperative |
|
I/O BASE ADDRESS |
|||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
|
|
» |
2E0h |
Off |
On |
Off |
Off |
Off |
On |
|
|
160h |
On |
Off |
On |
Off |
Off |
On |
|
|
1E0h |
On |
Off |
Off |
Off |
Off |
On |
|
|
260h |
Off |
On |
On |
Off |
Off |
On |
|
|
360h |
Off |
Off |
On |
Off |
Off |
On |
|
|
3E0h |
Off |
Off |
Off |
Off |
Off |
On |
Note: Some examples of possible settings are shown. The switches are a binary representation of the hexadecimal I/O addresses. Switch 6 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 6=1h, 5=2h, 4=4h, 3=8h, 2=10h, 1=20h. Turn off the switches, add the values of the off switches, and multiply the total by 10h to obtain the correct I/O address. (On=0, Off=1) |
|||||||
|
BOOT CONFIGURATION |
||
|
Setting |
SW2/9 |
SW2/10 |
|
Boot from network, ignore bootable floppy or hard drives |
On |
On |
|
Try to boot from floppy drive A, then the network |
On |
Off |
|
Try to boot from hard drive C, then the network |
Off |
Off |
|
Try to boot from floppy drive A, then from hard drive C, then the network |
Off |
On |
|
INTERRUPT REQUEST |
|||||
|
IRQ |
JP1 |
JP2 |
JP3 |
JP4 |
JP5 |
|
2 |
Open |
Open |
Open |
Open |
Closed |
|
3 |
Open |
Open |
Open |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Closed |
Open |
Open |
Open |
|
7 |
Closed |
Open |
Open |
Open |
Open |
|
OPTIONAL 8253 TIMER INTERRUPT REQUEST |
||||||||||
|
IRQ |
JP6 |
JP7 |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
JP15 |
|
2 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed |
|
3 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
5 |
Open |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
7 |
Closed |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
RESPONSE/RECONFIGURATION TIMEOUTS |
||||
|
Response Time |
Reconfiguration Time |
JP16 |
JP17 |
|
|
» |
74.7µs |
840µs |
Open |
Open |
|
|
283.4µs |
1680µs |
Open |
Closed |
|
|
561.8µs |
1680µs |
Closed |
Open |
|
|
1118.6µs |
1680µs |
Closed |
Closed |
|
Note: All NICs on the network must have this option set the same. |
||||
|
RIM BUFFER, BOOT ROM, AND EXPANSION RAM ADDRESS CONFIGURATION |
||||
|
Address |
SW1/7 |
SW1/8 |
SW1/9 |
SW1/10 |
|
Cxxxxh |
On |
On |
Off |
Off |
|
Dxxxxh |
On |
On |
Off |
On |
|
Exxxxh |
On |
On |
On |
On |
|
Note:This table represents the first digit of three seperate addresses, the rim bufffer address, the boot ROM |
||||
|
BOOT ROM ADDRESS CONFIGURATION |
||||
|
Address |
JP18 |
JP19 |
JP20 |
|
|
» |
x8000h |
Open |
Closed |
Open |
|
|
Disabled |
Open |
Open |
Open |
|
|
x4000h |
Closed |
Open |
Open |
|
|
xC000h |
Open |
Open |
Closed |
|
EXPANSION SRAM CONFIGURATION |
||||
|
Size |
Address |
JP21 |
W1 |
|
|
» |
Disabled |
Disabled |
Open |
N/A |
|
|
2K x 8 (24pin) |
x4000h |
Closed |
Pins 2 & 3 closed |
|
|
8K x 8 (28pin) |
x4000h |
Closed |
PIns 1 & 2 closed |
|
Note:The manufacturer suggests the use of Hitatchi 6116 2K x 8 SRAM or Hitatchi 6264 8K x 8 SRAM chips. Most network software packages do not currently support the extra expansion memory. |
||||
|
RAM BUFFER ADDRESS CONFIGURATION |
|||
|
Address |
JP22 |
JP23 |
|
|
» |
x0000h |
Open |
Closed |
|
|
x4000h |
Closed |
Open |
|
Note: The RAM Buffer cannot be disabled. |
|||
