TIARA COMPUTER SYSTEMS, INC.

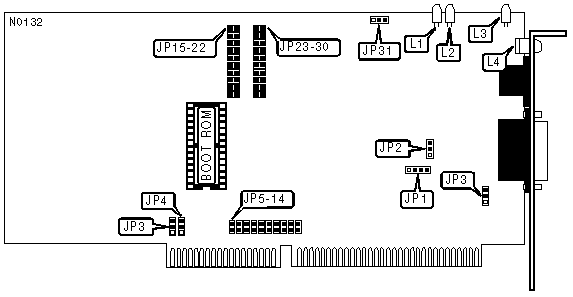

10BASE-T LanCard 2002
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Shielded twisted pair Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
BOOT ROM ADDRESS | ||||||||
|
Address |
JP23 |
JP24 |
JP25 |
JP26 |
JP27 |
JP28 |
JP29 |
JP30 |
|
Disabled |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
C400h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
|
C800h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
|
CC00h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
D000h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
|
D400h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
|
D800h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
|
DC00h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
INTERRUPT REQUEST | |||||||||||
|
IRQ |
JP5 |
JP6 |
JP7 |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 | |
| » |
3 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
|
2 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
4 |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
11 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
12 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
15 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Open | |
|
CABLE TYPE | |
|
Type |
JP1 |
|
Shielded/Unshielded twisted pair |
Pins 3 & 4 closed |
|
AUI transceiver via DB-15 port |
Pins 2 & 3 Closed |
|
I/O BASE ADDRESS | |||||||||
|
Address |
JP15 |
JP16 |
JP17 |
JP18 |
JP19 |
JP20 |
JP21 |
JP22 | |
| » |
300h |
Closed |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
|
280h |
Open |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
2A0h |
Open |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
2C0h |
Open |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
2E0h |
Open |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
320h |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
340h |
Open |
Open |
Closed |
Open |
Open |
Open |
Open |
Open | |
|
360h |
Open |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
COMPATIBILITY MODE | ||
|
Mode |
JP3 |
JP4 |
|
Default |
Pins 1 & 2 Closed |
Pins 1 & 2 closed |
|
Special |
Pins 2 & 3 Closed |
Pins 2 & 3 closed |
|
Note:Use the special mode on the PS/2 Model 30-286 if the computer hangs after running IPX. | ||
|
DB-15 PORT GROUND CONFIGURATION | |
|
DB-15 Standard |
JP2 |
|
AUI |
Pins 1 & 2 closed |
|
DIX |
Pins 2 & 3 closed |
|
Note:JP3 should remain with pins 1 & 2 closed. | |
|
LINK INTEGRITY TEST | ||
|
Setting |
JP31 | |
| » |
Enabled |
Pins 1 & 2 closed |
|
Disabled |
Pins 2 & 3 closed | |
|
Note:Link Integrity is only used with 10Base-T wiring. When using an AUI transciever, the test should be disabled. | ||
|
DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
L1 |
On |
Collision detected on network |
|
L1 |
Off |
No collision detected on network |
|
L2 |
On |
Twisted pair network connection is good |
|
L2 |
Off |
Twisted pair network connection is broken |
|
L3 |
On |
Power on |
|
L3 |
Off |
Power off |
|
L4 |
On |
Data is being transmitted/received |
|
L4 |
Off |
Data is not being transmitted/received |
