THOMAS-CONRAD CORPORATION

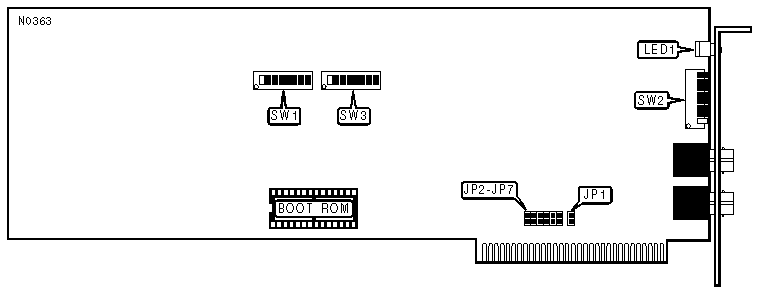

TC3042-ST (Version 1.0) TCNS 8-BIT
|
NIC Type |
TCNS (Proprietary) |
|
Transfer Rate |
100Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Fiber optic cable |
|
Boot ROM |
Available |
|
BASE I/O ADDRESS | |||||||
|
Address |
SW3/1 |
SW3/2 |
SW3/3 |
SW3/4 |
SW3/5 |
SW3/6 | |
| » |
2E0h |
Off |
On |
Off |
Off |
Off |
On |
|
2F0h |
Off |
On |
Off |
Off |
Off |
Off | |
|
300h |
Off |
Off |
On |
On |
On |
On | |
|
350h |
Off |
Off |
On |
Off |
On |
Off | |
|
BASE MEMORY ADDRESS | |||||||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 | |
| » |
D000h |
Off |
Off |
On |
Off |
On |
On |
On |
On |
|
C000h |
Off |
Off |
On |
On |
On |
On |
On |
On | |
|
C400h |
Off |
Off |
On |
On |
On |
Off |
On |
On | |
|
C800h |
Off |
Off |
On |
On |
Off |
On |
On |
On | |
|
CC00h |
Off |
Off |
On |
On |
Off |
Off |
On |
On | |
|
D400h |
Off |
Off |
On |
Off |
On |
Off |
On |
On | |
|
D800h |
Off |
Off |
On |
Off |
Off |
On |
On |
On | |
|
DC00h |
Off |
Off |
On |
Off |
Off |
Off |
On |
On | |
|
E000h |
Off |
Off |
Off |
On |
On |
On |
On |
On | |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Red |
On |
Data is being transmitted or received. |
|
LED1 |
Red |
Blinking |
Network connection is bad |
|
LED1 |
Red |
Off |
No network connection, or the card is malfunctioning. |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
SW3/switch 8 |
N/A |
|
INTERRUPT SETTINGS | |||||||
|
IRQ |
JP6B |
JP6C |
JP6D |
JP6E |
JP6F |
JP6G | |
| » |
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
NODE ADDRESS | ||||||||||
|
Node |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 | ||
|
0 |
- |
- |
- |
- |
- |
- |
- |
- | ||
| » |
1 |
Off |
On |
On |
On |
On |
On |
On |
On | |
|
2 |
On |
Off |
On |
On |
On |
On |
On |
On | ||
|
3 |
Off |
Off |
On |
On |
On |
On |
On |
On | ||
|
4 |
On |
On |
Off |
On |
On |
On |
On |
On | ||
|
251 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off | ||
|
252 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off | ||
|
253 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off | ||
|
254 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off | ||
|
255 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off | ||
|
Notes: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, off=1) | ||||||||||
|
OPERATING MODE | ||
|
Mode |
SW3/switch 7 | |
| » |
Enhanced Mode |
On |
|
Compatible Mode |
Off | |
|
WAIT STATE CONFIGURATION | ||
|
0 Wait State |
JP1 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
