STANDARD MICROSYSTEMS CORPORATION
WD8005
|
NIC Type |
Token-Ring |
|
Transfer Rate |
4Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Unshielded twisted pair Shielded twisted pair |
|
Boot ROM |
Available |
|

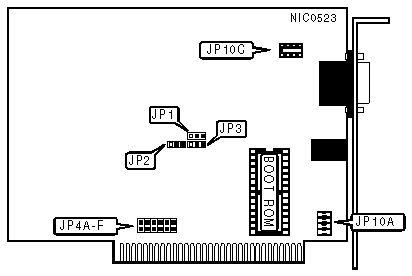

BOOT ROM |
||
|
Setting |
JP1 |
|
|
» |
Disabled |
Pins 1 & 2 closed |
|
|
Enabled |
Pins 2 & 3 closed |
|
PRIMARY/ALTERNATE CARD |
||
|
Setting |
JP2 |
|
|
» |
Primary |
Pins 1 & 2 closed |
|
|
Alternate |
Pins 2 & 3 closed |
|
Note: If two cards are to be used in a single system, one of the cards must be set to primary and the other one must be set to alternate. |
||
|
BOOT ROM SIZE |
||
|
Size |
JP3 |
|
|
» |
32KB |
Pins 1 & 2 closed |
|
|
64KB |
Pins 2 & 3 closed |
|
INTERRUPT REQUEST |
|||||||
|
IRQ |
JP4A |
JP4B |
JP4C |
JP4D |
JP4E |
JP4F |
|
|
» |
2 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
|
3 |
Open |
Closed |
Open |
Open |
Open |
Open |
|
|
4 |
Open |
Open |
Closed |
Open |
Open |
Open |
|
|
5 |
Open |
Open |
Open |
Closed |
Open |
Open |
|
|
6 |
Open |
Open |
Open |
Open |
Closed |
Open |
|
|
7 |
Open |
Open |
Open |
Open |
Open |
Closed |
|
CABLE TYPE |
|||
|
Type |
JP10A |
JP10C |
|
|
» |
Unshielded twisted pair |
Installed |
Open |
|
|
AUI transceiver via DB-15 port |
Open |
Installed |
|
Note: JP10A & JP10C are jumper sockets. A one-piece jumper block is installed in the sockets. |
|||
