STANDARD MICROSYSTEMS CORPORATION
SMC3016TP
|

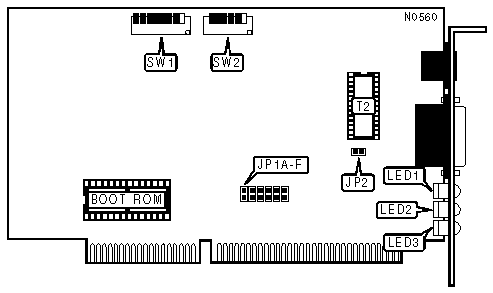

NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Star |
|
Wiring Type |
Unshielded twisted pair AUI transceiver via DB-15 port |
|
Boot ROM |
Available |
|
INTERRUPT REQUEST | |||||||
|
IRQ |
JP1A |
JP1B |
JP1C |
JP1D |
JP1E |
JP1F | |
|
2/9 |
Open |
Open |
Open |
Open |
Closed |
Open | |
| » |
3 |
Closed |
Open |
Open |
Open |
Open |
Open |
|
4 |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
5 |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
7 |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
9 |
Open |
Open |
Open |
Open |
Open |
Open | |
|
10 |
Open |
Open |
Open |
Open |
Open |
Closed | |
|
CABLE TYPE | |||
|
Type |
JP2 |
Pulse Transformer T2 | |
| » |
Unshielded twisted pair |
Open |
Installed |
|
AUI transceiver via DB-15 port |
Closed |
Not installed | |
|
I/O BASE ADDRESS | ||||||||
|
I/O |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 | |
|
200 |
On |
On |
On |
On |
Off |
On |
On | |
|
220 |
Off |
On |
On |
On |
Off |
On |
On | |
|
240 |
On |
Off |
On |
On |
Off |
On |
On | |
|
260 |
Off |
Off |
On |
On |
Off |
On |
On | |
|
280 |
On |
On |
Off |
On |
Off |
On |
On | |
|
2A0 |
Off |
On |
Off |
On |
Off |
On |
On | |
|
2C0 |
On |
Off |
Off |
On |
Off |
On |
On | |
|
2E0 |
Off |
Off |
Off |
On |
Off |
On |
On | |
| » |
300 |
On |
On |
On |
Off |
Off |
On |
On |
|
320 |
Off |
On |
On |
Off |
Off |
On |
On | |
|
340 |
On |
Off |
On |
Off |
Off |
On |
On | |
|
360 |
Off |
Off |
On |
Off |
Off |
On |
On | |
|
380 |
On |
On |
Off |
Off |
Off |
On |
On | |
|
3A0 |
Off |
On |
Off |
Off |
Off |
On |
On | |
|
3C0 |
On |
Off |
Off |
Off |
Off |
On |
On | |
|
3E0 |
Off |
Off |
Off |
Off |
Off |
On |
On | |
|
BOOT ROM | ||
|
Setting |
SW1/8 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
BASE MEMORY ADDRESS | |||||||
|
Address |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 | |
|
C0000h |
Off |
Off |
On |
On |
On |
On | |
|
C4000h |
Off |
Off |
On |
On |
On |
Off | |
|
C8000h |
Off |
Off |
On |
On |
Off |
On | |
|
CC000h |
Off |
Off |
On |
On |
Off |
Off | |
| » |
D0000h |
Off |
Off |
On |
Off |
On |
On |
|
D4000h |
Off |
Off |
On |
Off |
On |
Off | |
|
D8000h |
Off |
Off |
On |
Off |
Off |
On | |
|
DC000h |
Off |
Off |
On |
Off |
Off |
Off | |
|
E0000h |
Off |
Off |
Off |
On |
On |
On | |
|
E4000h |
Off |
Off |
Off |
On |
On |
Off | |
|
E8000h |
Off |
Off |
Off |
On |
Off |
On | |
|
EC000h |
Off |
Off |
Off |
On |
Off |
Off | |
