NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8-bit ISA/16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

ROM TYPE SELECT
Type	JP1
Remote Reset ROM	Open
Flash ROM	Closed

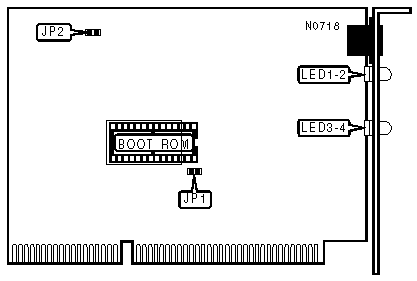

Note: The ROM socket is 32 pins, but the Flash ROM is only 28 pins. The red box on the diagram shows the proper positioning for the installation of a Flash ROM.

CONFIGURATION OVERRIDE
Mode	JP2
Normal	Open
Force default configuration	Closed

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Yellow	On	Data is being transmitted
LED1	Yellow	On	Data is not being transmitted
LED2	Green	On	Data is being received
LED2	Green	On	Data is not being received
LED3	Yellow	On	Collision detected
LED3	Yellow	On	Collision not detected
LED4	Green	On	Link integrity OK
LED4	Green	Off	Link integrity broken
