SYSKONNECT, INC.
SK-NET TR4/16+
|
NIC Type |
Token Ring |
|
Transfer Rate |
4/16Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Ring |
|
Wiring Type |
Shielded twisted pari via DB-9 port Unshielded twisted pair |
|
Boot ROM |
Available (Location unknown) |
|

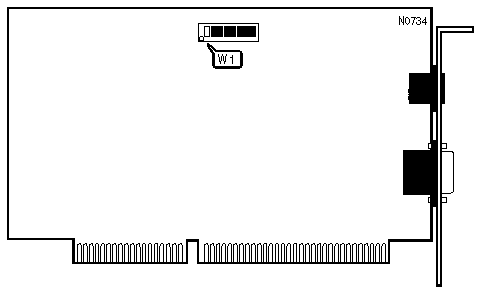

BOOT ROM | ||
|
Setting |
W1/2 | |
| » |
Disabled |
Off |
|
Enabled |
On | |
|
BASE MEMORY ADDRESS SELECT | |||
|
Address |
W1/3 |
W1/4 |
W1/5 |
|
C0000h |
On |
On |
On |
|
C4000h |
On |
On |
Off |
|
C8000h |
On |
Off |
On |
|
CC000h |
On |
Off |
Off |
|
D0000h |
Off |
On |
On |
|
D4000h |
Off |
On |
Off |
|
D8000h |
Off |
Off |
On |
|
DC000h |
Off |
Off |
Off |
|
I/O ADDRESS SELECT | |||
|
Address |
W1/6 |
W1/7 |
W1/8 |
|
0A20h |
Off |
Off |
Off |
|
1A20h |
Off |
Off |
On |
|
0B20h |
Off |
On |
Off |
|
1B20h |
Off |
On |
On |
|
0980h |
On |
Off |
Off |
|
1980h |
On |
Off |
On |
|
0900h |
On |
On |
Off |
|
1900h |
On |
On |
On |
|
FACTORY CONFIGURED SETTINGS | |
|
Switch |
Setting |
|
W1/1 |
On |
|
Note:This setting should be altered only if the system’s motherboard uses address lines SA17 to SA19. | |
