SYSKONNECT, INC.

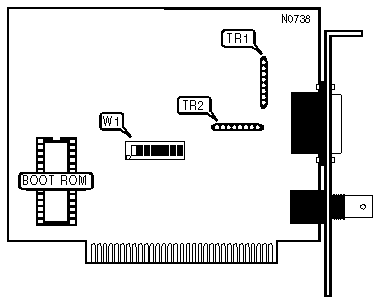

SK-NET G8
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
DIX transceiver via DB-15 port RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|
BOOT ROM | ||
|
Setting |
W1/2 | |
| » |
Disabled |
On |
|
Enabled |
Off | |
|
BASE MEMORY ADDRESS | ||||
|
Address |
W1/3 |
W1/4 |
W1/5 | |
| » |
DC00h |
Off |
Off |
Off |
|
C000h |
On |
On |
On | |
|
C400h |
Off |
On |
On | |
|
C800h |
On |
Off |
On | |
|
CC00h |
Off |
Off |
On | |
|
D000h |
On |
On |
Off | |
|
D400h |
Off |
On |
Off | |
|
D800h |
On |
Off |
Off | |
|
CABLE TYPE | ||
|
Type |
TR1 |
TR2 |
|
Thick Ethernet |
Installed |
Not installed |
|
Thin Ethernet |
Not installed |
Installed |
|
INTERRUPT CONFIGURATION | |
|
IRQ3 |
W1/1 |
|
Enabled |
On |
|
Disabled |
Off |
|
I/O ADDRESS | ||||
|
Address |
W1/6 |
W1/7 |
W1/8 | |
| » |
390h |
Off |
Off |
Off |
|
100h |
On |
On |
On | |
|
180h |
Off |
On |
On | |
|
208h |
On |
Off |
On | |
|
220h |
On |
On |
Off | |
|
288h |
Off |
On |
Off | |
|
320h |
Off |
Off |
On | |
|
328h |
On |
Off |
Off | |
