NIC Type	Ethernet
Transfer Rate	10Mbps
Data Bus	8/16-bit ISA
Topology	Linear bus Star
Wiring Type	DIX transceiver via DB-15 port Unshielded twisted pair
Boot ROM	Available

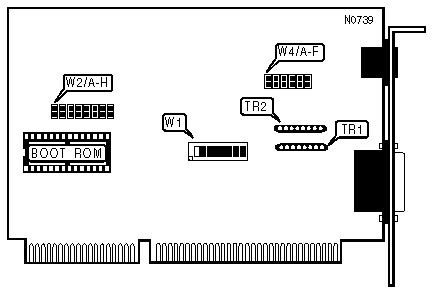

BOOT ROM
Setting		W1/2
»	Disabled	On
	Enabled	Off

BASE MEMORY ADDRESS
Address		W1/3	W1/4	W1/5
»	DC00h	Off	Off	Off
	C000h	On	On	On
	C400h	Off	On	On
	C800h	On	Off	On
	CC00h	Off	Off	On
	D000h	On	On	Off
	D400h	Off	On	Off
	D800h	On	Off	Off

CABLE TYPE
Type	TR1	TR2
Thick Ethernet	Installed	Not installed
Twisted pair	Not installed	Installed

DATA BUS SIZE (VERSION A)
Size		W2/A	W2/B	W2/C	W2/D	W2/E	W2/F	W2/G	W2/H
»	16-bit	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Closed
	8-bit	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Closed

DATA BUS SIZE (VERSION B)
Size		W2/A	W2/B	W2/C	W2/D	W2/E	W2/F	W2/G	W2/H
»	16-bit	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Open
	8-bit	Open	Closed	Closed	Closed	Closed	Closed	Closed	Closed

IMPEDANCE
Setting		W4/A	W4/B	W4/C	W4/D	W4/E	W4/F
»	100ohm	Closed	Closed	Closed	Closed	Closed	Closed
	150ohm	Open	Open	Open	Open	Open	Open

INTERRUPT CONFIGURATION
IRQ3	W1/1
Enabled	On
Disabled	Off

I/O ADDRESS
Address		W1/6	W1/7	W1/8
»	390h	Off	Off	Off
	100h	On	On	On
	180h	Off	On	On
	208h	On	Off	On
	220h	On	On	Off
	288h	Off	On	Off
	320h	Off	Off	On
	328h	On	Off	Off
