NIC Type	Token Ring
Transfer Rate	4/16Mbps
Data Bus	8/16-bit ISA
Topology	Ring
Wiring Type	Shielded twisted pair via DB-9 port Unshielded twisted pair
Boot ROM	Via firmware

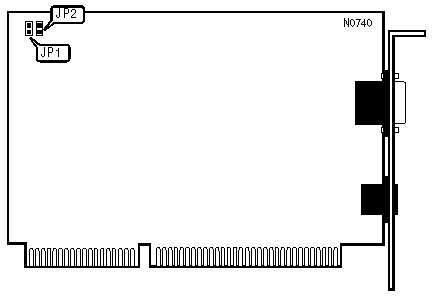

INTERRUPT CONFIGURATION
IRQ2		JP1
»	Enabled	Closed
	Disabled	Open

PRIMARY/ALTERNATE ADAPTER
Setting		JP2
»	Primary	Closed
	Alternate	Open
Note:Up to two TRopicBlue adapters may be installed in a system, so long as they do not share the same JP2 setting.
