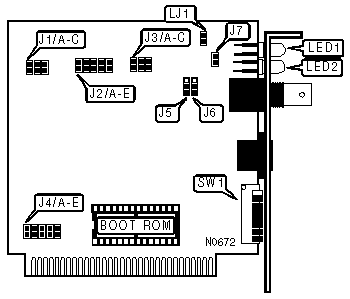

COMPEX, INC.
ANET-1A/ANET-1(REVISION K)
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
8-bit ISA |
|
Topology |
Linear bus Star |
|
Wiring Type |
Unshielded twisted pair
|
|
Boot ROM |
Available |
|
BASE MEMORY ADDRESS SELECT | ||||||
|
Address |
J2/A |
J2/B |
J2/C |
J2/D |
J2/E | |
| » |
D0000h |
Closed |
Open |
Open |
Closed |
Closed |
|
C0000h |
Closed |
Closed |
Closed |
Closed |
Closed | |
|
C4000h |
Closed |
Closed |
Open |
Closed |
Closed | |
|
CC000h |
Closed |
Open |
Closed |
Closed |
Closed | |
|
D4000h |
Open |
Closed |
Closed |
Closed |
Closed | |
|
D8000h |
Open |
Closed |
Open |
Closed |
Closed | |
|
DC000h |
Open |
Open |
Closed |
Closed |
Closed | |
|
E0000h |
Open |
Open |
Open |
Closed |
Closed | |
|
BOOT ROM | ||
|
Setting |
J1/C | |
| » |
Disabled |
open |
|
Enabled |
closed | |
|
CABLE TOPOLOGY | ||
|
Setting |
J7 | |
| » |
Star |
Closed |
|
Linear bus |
Open | |
|
CABLE TYPE | |||
|
Type |
J5 |
J6 | |
| » |
RG58A/U 50ohm coaxial |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
Unshielded twisted pair |
Pins 2 & 3 closed |
Pins 2 & 3 closed | |
|
CONNECTIONS | |
|
Purpose |
Location |
|
External LED connector |
LJ1 |
|
INTERRUPT SELECT | ||||||
|
IRQ |
J4/A |
J4/B |
J4/C |
J4/D |
J4/E | |
| » |
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
|
IRQ3 |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ7 |
Open |
Open |
Open |
Open |
Closed | |
|
I/O ADDRESS SELECT | ||||
|
Address |
J3/A |
J3/B |
J3/C | |
| » |
2E0h |
Closed |
Open |
Closed |
|
260h |
Closed |
Closed |
Closed | |
|
290h |
Closed |
Closed |
Open | |
|
2F0h |
Closed |
Open |
Open | |
|
300h |
Open |
Closed |
Closed | |
|
350h |
Open |
Closed |
Open | |
|
380h |
Open |
Open |
Closed | |
|
3E0h |
Open |
Open |
Open | |
|
NODE ADDRESS | ||||||||
|
Node |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
Off |
On |
On |
On |
On |
On |
On |
On |
|
2 |
On |
Off |
On |
On |
On |
On |
On |
On |
|
3 |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
4 |
On |
On |
Off |
On |
On |
On |
On |
On |
|
251 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
252 |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
253 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
254 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
255 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note:Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 1 is the Least Significant Bit and switch 8 is the Most Significant Bit. The switches have the following decimal values: switch 1=1, 2=2, 3=4, 4=8, 5=16, 6=32, 7=64, 8=128. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1) | ||||||||
|
TIMEOUT CONFIGURATION | |||
|
Response Time |
J1/A |
J1/B | |
| » |
74.7µs |
open |
open |
|
283.4µs |
open |
closed | |
|
561.8µs |
closed |
open | |
|
1118.6µs |
closed |
closed | |
|
DIAGNOSTIC LED | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Data is being received |
|
LED1 |
Green |
Off |
Data is not being received |
|
LED2 |
Red |
Blinking |
Network connection is broken |
|
LED2 |
Red |
On |
Network connection is good |
