NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	32-bit SE 020 Processor direct slot (Apple)
Topology:	Linear Bus Star
Wiring Type	RG58A/U 50ohm coaxial Shielded/Unshielded twisted pair
Boot ROM	Not available

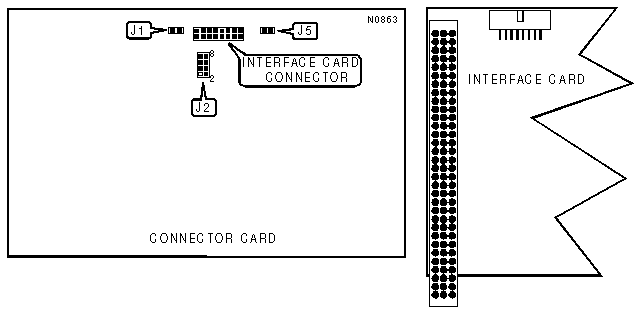

CABLE TYPE
Type		J1	J5
»	RG58A/U 50ohm coaxial	Open	Closed
	Shielded/Unshielded twisted pair	Closed	Open

TEST SETTINGS
Test		J2
»	Link and Jabber tests enabled	Pins 1 & 2 closed
	All tests disabled	Pins 3 & 4 closed
	SQE and Jabber tests enabled	Pins 5 & 6 closed
	SQE, Link, and Jabber tests enabled	Pins 7 & 8 closed
