NIC Type	FDDI
Transfer Rate	100Mbps
Data Bus	16-bit EISA
Topology	Ring
Wiring Type	Fiber optic cable
Boot ROM	Not available

FACTORY CONFIGURED - DO NOT ALTER

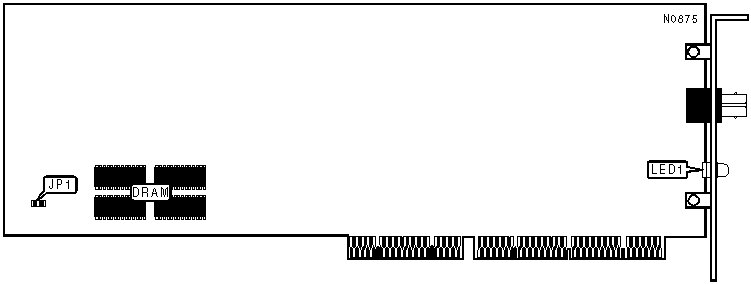

Jumper	Position
JP1	Open

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	One blink	Self-test
LED1	Green	Blinking	Network problem detected
LED1	Red	Blinking	Cable is of wrong type
LED1	Red	On	Cable connection not good
LED1	N/A	Off	Normal operation
