SIEMENS NIXDORF INFORMATIONSSYSTEME AG
S26361-D633-V2
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus/Star |
|
Wiring Type |
Unshielded twisted pair AUI Transceiver via DB-15 port |
|
Boot ROM |
Available |
|

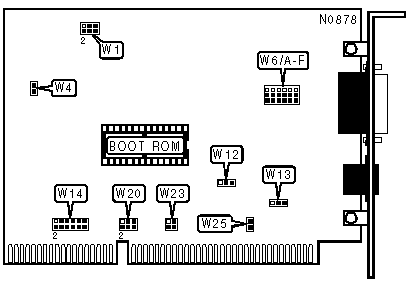

CABLE TYPE SELECTION |
||
|
Cable Type |
W6/A-F |
W12 |
|
» Unshielded twisted pair |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
AUI Transceiver via DB-15 port |
Pins 1 & 2 closed |
Pins 1 & 2 closed |
|
BOOT ROM SELECTION |
|
|
Mode |
W1 |
|
» Disabled |
Pins 3 & 4 open |
|
Enabled |
Pins 3 & 4 closed |
|
BASE I/O AND BOOT ROM ADDRESS SELECTION |
||
|
Base I/O Address |
Boot ROM Address |
W1 |
|
» 300h |
C8000h |
Pins 1 & 2, 5 & 6 closed |
|
320h |
CC000h |
Pins 1 & 2 closed |
|
340h |
D0000h |
Pins 5 & 6 closed |
|
360h |
D4000h |
Pins 1 & 2, 5 & 6 open |
|
INTERRUPT SELECTION |
||
|
IRQ |
W20 |
W25 |
|
None |
Open |
Open |
|
IR/FONT |
Open |
Closed |
|
» IRQ3 |
Pins 1 & 2 closed |
Open |
|
IRQ4 |
Pins 3 & 4 closed |
Open |
|
IRQ5 |
Pins 5 & 6 closed |
Open |
|
DMA CHANNEL SELECTION |
||
|
Channel |
W14 |
W23 |
|
3 |
Open |
Pins 1 & 2, 3 & 4 closed |
|
» 5 |
Pins 9 & 10, 11 & 12 closed |
Open |
|
6 |
Pins 5 & 6, 7 & 8 closed |
Open |
|
7 |
Pins 1 & 2, 3 & 4 closed |
Open |
|
WAIT STATE CONFIGURATION |
|
|
Wait states |
W4 |
|
» 0 |
Closed |
|
1 |
Open |
|
SIGNAL QUALITY ERROR TEST CONFIGURATION |
|
|
Mode |
W12 |
|
» Enabled |
Pins 2 & 3 closed |
|
Disabled |
Pins 1 & 2 closed |
