TRENDWARE INTERNATIONAL, INC.
ETHER-16C
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
RG-58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

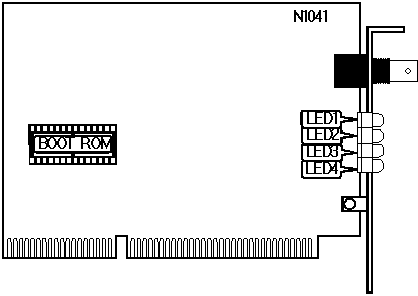

DIAGNOSTIC LED(S) | ||
|
LED |
Status |
Condition |
|
LED1 |
On |
Power on |
|
LED1 |
Off |
Power off |
|
LED2 |
On |
Link is good |
|
LED2 |
Off |
Link is broken |
|
LED3 |
On |
Collision detected on network |
|
LED3 |
Off |
No collision detected on network |
|
LED4 |
On |
Card is transmitting for an extended period (Jabber) |
|
LED4 |
Off |
Normal operation |
