NIC Type	Token Ring
Transfer Rate	4/16Mbps
Data Bus	16-bit ISA
Topology	Ring
Wiring Type	Shielded twisted pair Unshielded twisted pair
Boot ROM	Available

RAM SIZE CONFIGURATION
Size	JB1
128KB	Pins 2 & 3 closed
512KB	Pins 1 & 2 closed
Note: The location of JB1 is unidentified.

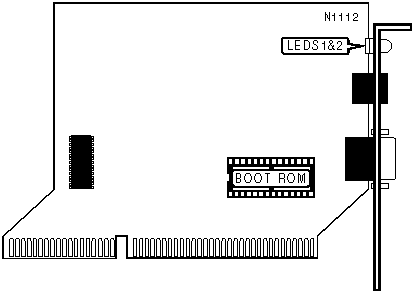

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Adapter is inserted into the ring
LED1	Green	Off	Adapter is not inserted into the ring
LED2	Red	On	Data is being transmitted/received
LED2	Red	Off	Data is not being transmitted/received
