NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Available

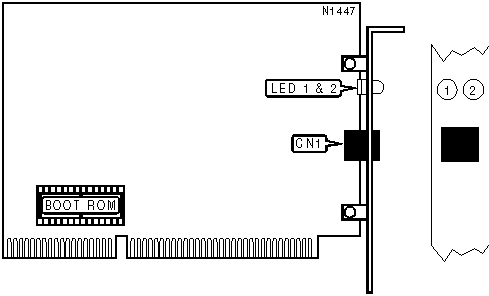

CONNECTIONS
Function	Label
RJ-45/10BASE-T	CN1

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED 1	Green	On	Power on
LED 1	Green	Off	Power off
LED 1	Green	Blinking	Data is being transmitted
LED 2	Green	On	Link integrity exists
LED 2	Green	Off	Link integrity broken
LED 2	Green	Blinking	Data is being received

MISCELLANEOUS TECHNICAL NOTES

This is a Plug-N-Play card, and it will detect which slot (8 or 16-bit) the card uses.
