NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Available (location unidentified)

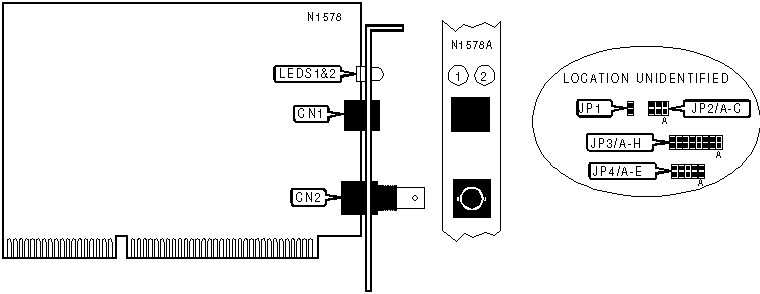

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	RG-58A/U 50ohm coaxial port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Jumperless mode selected	J1	Closed
	Jumper mode selected	J1	Open

BASE I/O ADDRESS SELECTION
Address		J2/A	J2/B	J2/C
	200h	Closed	Open	Open
	220h	Closed	Open	Closed
	240h	Closed	Closed	Open
	260h	Closed	Closed	Closed
»	300h	Open	Open	Open
	320h	Open	Open	Closed
	340h	Open	Closed	Open
	360h	Open	Closed	Closed

INTERRUPT SELECTION
IRQ		JP3/A	JP3/B	JP3/C	JP3/D	JP3/E	JP3/F	JP3/G	JP3/H
	2/9	Closed	Open	Open	Open	Open	Open	Open	Open
»	3	Open	Closed	Open	Open	Open	Open	Open	Open
	4	Open	Open	Closed	Open	Open	Open	Open	Open
	5	Open	Open	Open	Closed	Open	Open	Open	Open
	10	Open	Open	Open	Open	Closed	Open	Open	Open
	11	Open	Open	Open	Open	Open	Closed	Open	Open
	12	Open	Open	Open	Open	Open	Open	Closed	Open
	15	Open	Open	Open	Open	Open	Open	Open	Closed

ROM ADDRESS SELECTION
Address	JP4/A	JP4/B	JP4/C	JP4/D	JP4/E
Disabled	Open	Open	Open	Open
C0000h, 8/16K	Open	Open	Open	Open	Closed
C4000h, 8/16K	Closed	Open	Open	Open	Closed
C8000h, 8/16K	Open	Closed	Open	Open	Closed
CC000h, 8/16K	Closed	Closed	Open	Open	Closed
D0000h, 8/16K	Open	Open	Closed	Open	Closed
D4000h, 8/16K	Closed	Open	Closed	Open	Closed
D8000h, 8/16K	Open	Closed	Closed	Open	Closed
DC000h, 8/16K	Closed	Closed	Closed	Open	Closed

DIAGNOSTIC LED(S)
LED	Status	Condition
LED1	On	Power is on
LED1	Off	Power is off
LED2	Blinking	Data is being transmitted/received
LED2	Off	Data is not being transmitted/received
