NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	PCMCIA Type II
Topology	Star
Wiring Type	Unshielded twisted pair
Boot ROM	Not available

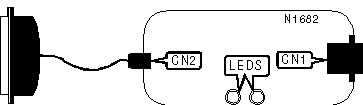

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	15-pin PCMCIA card connector	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	Blinking	Data is being transmitted/received
LED1	Green	Off	Data is not being transmitted/received
LED2	Green	On	Network connection is good
LED2	Green	Off	Network connection is broken
Note:The relative location of LED1 to LED2 is unidentified.
