NIC Type	Ethernet
Network Transfer Rate	10Mbps
Data Bus	16-bit ISA
Topology	Linear Bus, Star
Wiring Type	Unshielded twisted pair RG-58A/U 50ohm coaxial
Boot ROM	Not available

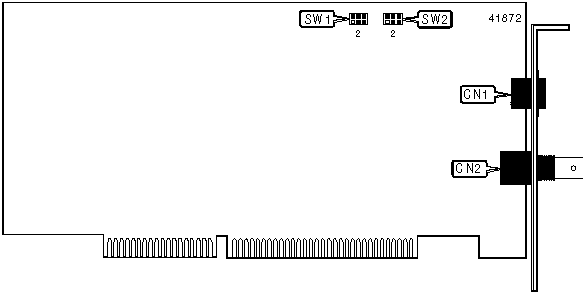

CONNECTIONS
Function	Label	Function	Label
Unshielded twisted pair port	CN1	RG-58A/U 50ohm coaxial port	CN2

CABLE TYPE SELECTION
Type	SW1
RG-58A/U 50ohm coaxial	Pins 1 & 2, 4 & 5 closed
Unshielded twisted pair	Pins 2 & 3, 5 & 6 closed

POLARITY CONFIGURATION
Polarity	SW2
Normal	Pins 2 & 3, 5 & 6 closed
Reversed	Pins 1 & 2, 4 & 5 closed
