ZENITH DATA SYSTEMS
LAN10E-MC
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
32-bit MCA |
|
Topology |
Linear Bus |
|
Wiring Type |
AUI transceiver via DB-15 port RG--58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

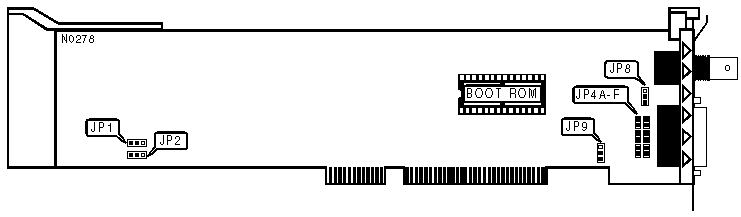

BOOT ROM SIZE | ||
|
Size |
JP1 |
JP2 |
|
16KB |
Pins 1 & 2 Closed |
Pins 1 & 2 Closed |
|
32KB |
Pins 2 & 3 Closed |
Pins 1 & 2 Closed |
|
64KB |
Pins 2 & 3 Closed |
Pins 2 & 3 Closed |
|
CABLE TYPE | ||
|
Type |
JP4A - JP4F | |
| » |
RG--58A/U 50ohm coaxial |
Closed |
|
AUI transceiver via DB-15 port |
Open | |
|
SIGNAL QUALITY | ||
|
Setting |
JP8 | |
| » |
SQE test disabled |
Pins 2 & 3 Closed |
|
SQE test enabled |
Pins 1 & 2 Closed | |
|
Note:Signal Quality Error (SQE) is an internal test of the collision circuitry and path. | ||
|
POLARITY CORRECTION | ||
|
Automatic Polarity Correction |
JP9 | |
| » |
Enabled |
Pins 2 & 3 Closed |
|
Disabled |
Pins 1 & 2 Closed | |
|
Note:With automatic polarity correction enabled, the card will sense if the receive wires are reversed and
| ||
