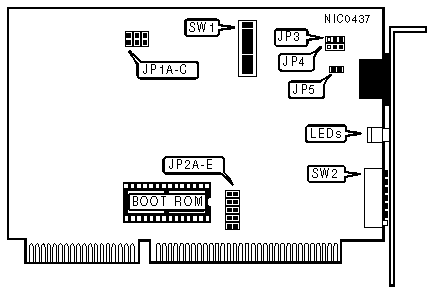

XINETRON, INC.
RA232
|
NIC Type |
ARCnet |
|
Transfer Rate |
2.5Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus |
|
Wiring Type |
Unshielded twisted pair |
|
Boot ROM |
Available |
|
NODE ADDRESS | ||||||||
|
Node |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 |
|
0 |
- |
- |
- |
- |
- |
- |
- |
- |
|
1 |
On |
On |
On |
On |
On |
On |
On |
Off |
|
2 |
On |
On |
On |
On |
On |
On |
Off |
On |
|
3 |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
4 |
On |
On |
On |
On |
On |
Off |
On |
On |
|
251 |
Off |
Off |
Off |
Off |
Off |
On |
Off |
Off |
|
252 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
On |
|
253 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off |
|
254 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On |
|
255 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: Node address 0 is used for messaging between nodes and must not be used. A total of 255 node address settings are available. The switches are a binary representation of the decimal node addresses. Switch 8 is the Least Significant Bit and switch 1 is the Most Significant Bit. The switches have the following decimal values: switch 1=128, 2=64, 3=32, 4=16, 5=8, 6=4, 7=2, 8=1. Turn off the switches and add the values of the off switches to obtain the correct node address. (On=0, Off=1) | ||||||||
|
COMPATIBILITY MODE | ||
|
Setting |
JP1A | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:Some systems use non-standard timing. This option attempts to make those systems work with this card by extending the I/O bus cycle. If your system does not work with this card set this option to enabled (JP1 closed). | ||
|
WAIT STATE | ||
|
Setting |
JP1B | |
| » |
0 wait states |
Open |
|
1 wait state |
Closed | |
|
BOOT ROM | ||
|
Setting |
JP1C | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
INTERRUPT REQUEST | ||||||
|
IRQ |
JP2A |
JP2B |
JP2C |
JP2D |
JP2E | |
| » |
2/9 |
Closed |
Open |
Open |
Open |
Open |
|
3 |
Open |
Closed |
Open |
Open |
Open | |
|
4 |
Open |
Open |
Closed |
Open |
Open | |
|
5 |
Open |
Open |
Open |
Closed |
Open | |
|
7 |
Open |
Open |
Open |
Open |
Closed | |
|
TWISTED PAIR SELECT | |||
|
Setting |
JP3 |
JP4 | |
| » |
Inner pair |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
Outer pair |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
Note:If using the same wires for your phone system, the phone system must use one pair and the network must use the other pair. | |||
|
ONBOARD TERMINATOR | ||
|
Setting |
JP5 | |
| » |
Disabled |
Open |
|
Enabled |
Closed | |
|
Note:If the card is on either end of a linear bus network segment, the onboard terminator may be used instead of using an external terminator. | ||
|
I/O BASE ADDRESS | ||||
|
Address |
SW1/1 |
SW1/2 |
SW1/3 | |
|
260 - 26Fh |
On |
On |
On | |
|
290 - 29Fh |
On |
On |
Off | |
| » |
2E0 - 2EFh |
On |
Off |
On |
|
2F0 - 2FFh |
On |
Off |
Off | |
|
300 - 30Fh |
Off |
On |
On | |
|
350 - 25Fh |
Off |
On |
Off | |
|
380 - 38Fh |
Off |
Off |
On | |
|
3E0 - 3EFh |
Off |
Off |
Off | |
|
BUFFER ADDRESS & BOOT ROM ADDRESS | ||||||
|
Buffer Address |
Boot ROM Address |
SW1/4 |
SW1/5 |
SW1/6 |
SW1/7 |
SW1/8 |
|
C0000 - C07FFh |
C2000 - C3FFFh |
On |
On |
On |
On |
On |
|
C0800 - C0FFFh |
C2000 - C3FFFh |
On |
On |
On |
On |
Off |
|
C1000 - C17FFh |
C2000 - C3FFFh |
On |
On |
On |
Off |
On |
|
C1800 - C1FFFh |
C2000 - C3FFFh |
On |
On |
On |
Off |
Off |
|
C4000 - C47FFh |
C6000 - C7FFFh |
On |
On |
Off |
On |
On |
|
C4800 - C4FFFh |
C6000 - C7FFFh |
On |
On |
Off |
On |
Off |
|
C5000 - C57FFh |
C6000 - C7FFFh |
On |
On |
Off |
Off |
On |
|
C5800 - C5FFFh |
C6000 - C7FFFh |
On |
On |
Off |
Off |
Off |
|
CC000 - CC7FFh |
CE000 - CFFFFh |
On |
Off |
On |
On |
On |
|
CC800 - CCFFFh |
CE000 - CFFFFh |
On |
Off |
On |
On |
Off |
|
CD000 - CD7FFh |
CE000 - CFFFFh |
On |
Off |
On |
Off |
On |
|
CD800 - CDFFFh |
CE000 - CFFFFh |
On |
Off |
On |
Off |
Off |
|
D0000 - D07FFh |
D2000 - D3FFFh |
On |
Off |
Off |
On |
On |
|
D0800 - D0FFFh |
D2000 - D3FFFh |
On |
Off |
Off |
On |
Off |
|
D1000 - D17FFh |
D2000 - D3FFFh |
On |
Off |
Off |
Off |
On |
|
D1800 - D1FFFh |
D2000 - D3FFFh |
On |
Off |
Off |
Off |
Off |
|
D4000 - D47FFh |
D6000 - D7FFFh |
Off |
On |
On |
On |
On |
|
D4800 - D4FFFh |
D6000 - D7FFFh |
Off |
On |
On |
On |
Off |
|
D5000 - D57FFh |
D6000 - D7FFFh |
Off |
On |
On |
Off |
On |
|
D5800 - D5FFFh |
D6000 - D7FFFh |
Off |
On |
On |
Off |
Off |
|
D8000 - D87FFh |
DA000 - DBFFFh |
Off |
On |
Off |
On |
On |
|
D8800 - D8FFFh |
DA000 - DBFFFh |
Off |
On |
Off |
On |
Off |
|
D9000 - D97FFh |
DA000 - DBFFFh |
Off |
On |
Off |
Off |
On |
|
D9800 - D9FFFh |
DA000 - DBFFFh |
Off |
On |
Off |
Off |
Off |
|
DC000 - DC7FFh |
DE000 - DFFFFh |
Off |
Off |
On |
On |
On |
|
DC800 - DCFFFh |
DE000 - DFFFFh |
Off |
Off |
On |
On |
Off |
|
DD000 - DD7FFh |
DE000 - DFFFFh |
Off |
Off |
On |
Off |
On |
|
DD800 - DDFFFh |
DE000 - DFFFFh |
Off |
Off |
On |
Off |
Off |
|
E0000 - E07FFh |
E2000 - E3FFFh |
Off |
Off |
Off |
On |
On |
|
E0800 - E0FFFh |
E2000 - E3FFFh |
Off |
Off |
Off |
On |
Off |
|
E1000 - E17FFh |
E2000 - E3FFFh |
Off |
Off |
Off |
Off |
On |
|
E1800 - E1FFFh |
E2000 - E3FFFh |
Off |
Off |
Off |
Off |
Off |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Yellow |
Flashing |
Data is being transmitted |
|
LED1 |
Yellow |
Off |
Data is not being transmitted |
|
LED2 |
Red |
Slower Flashing |
Network activity detected |
|
LED2 |
Red |
Rapid Blinking |
Network connection is broken |
|
LED2 |
Red |
On |
Network connection is good |
