UNICOM ELECTRIC, INC.
2-IN-1 16-BIT ETHERNET ADAPTER CARD(ETP-4103-E)
|
NIC Type |
Ethernet |
|
Transfer Rate |
10Mbps |
|
Data Bus |
16-bit ISA |
|
Topology |
Linear Bus, Star |
|
Wiring Type |
Unshielded twisted pair RG58A/U 50ohm coaxial |
|
Boot ROM |
Available |
|

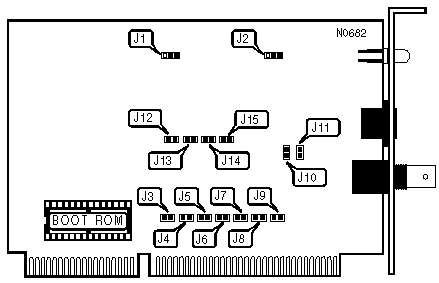

BASE I/O ADDRESS SELECT | |||
|
Address |
J10 |
J11 | |
| » |
300h |
Open |
Open |
|
320h |
Closed |
Open | |
|
340h |
Open |
Closed | |
|
360h |
Closed |
Closed | |
|
CABLE TYPE | ||
|
Type |
J2 | |
| » |
RG58A/U 50ohm coaxial |
Pins 2 & 3 closed |
|
Unshielded twisted pair |
Pins 1 & 2 closed | |
|
SYSTEM TYPE SELECT | |
|
Type |
J1 |
|
All Other |
Pins 1 & 2 closed |
|
Compaq 286, IBM PC model 30-286, C & T chipset |
Pins 2 & 3 closed |
|
INTERRUPT SELECT | ||||||||
|
IRQ |
J3 |
J4 |
J5 |
J6 |
J7 |
J8 |
J9 | |
| » |
IRQ3 |
Open |
Closed |
Open |
Open |
Open |
Open |
Open |
|
IRQ2 |
Closed |
Open |
Open |
Open |
Open |
Open |
Open | |
|
IRQ4 |
Open |
Open |
Closed |
Open |
Open |
Open |
Open | |
|
IRQ5 |
Open |
Open |
Open |
Closed |
Open |
Open |
Open | |
|
IRQ10 |
Open |
Open |
Open |
Open |
Closed |
Open |
Open | |
|
IRQ11 |
Open |
Open |
Open |
Open |
Open |
Closed |
Open | |
|
IRQ12 |
Open |
Open |
Open |
Open |
Open |
Open |
Closed | |
