NIC Type:	Ethernet
Transfer Rate:	10Mbps
Data Bus:	8-bit ISA
Topology:	Linear Bus
Wiring Type	AUI transceiver via DB-15 port
Boot ROM	Not available

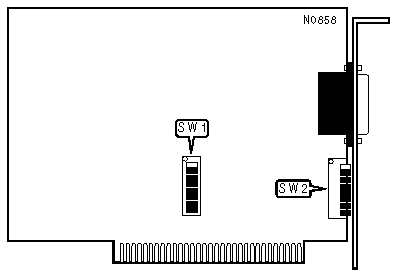

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/1	On
SW1/2-SW1/8	Off
SW2/8	N/A

I/O ADDRESS
Address	SW2
1	SW2/1 on
31	SW2/1-SW2/5 all on
Note:The address range is in decimal form from 0-to 31. The switches are a binary representation of the addresses. When a switch is on, the corresponding bit is set to 1 and has the following decimal value: SW2/1=16, SW2/2=8, SW2/3=4, SW2/4=2, SW2/5=1.

LINE SPEED
Speed	SW2/6	SW2/7
38.4Kbits/s	Off	Off
76.8Kbits/s	Off	On
153.6Kbits/s	On	Off
307.2Kbits/s	On	On
