Card Type	Network Interface Card
NIC Type	Ethernet
Maximum Onboard Memory	Unidentified
Boot ROM	Not available
Network Transfer Rate	10Mbps
Topology	Linear Bus
Wiring Type	RG-58A/U 50ohm coaxial
Data Bus	PMCIA Type II

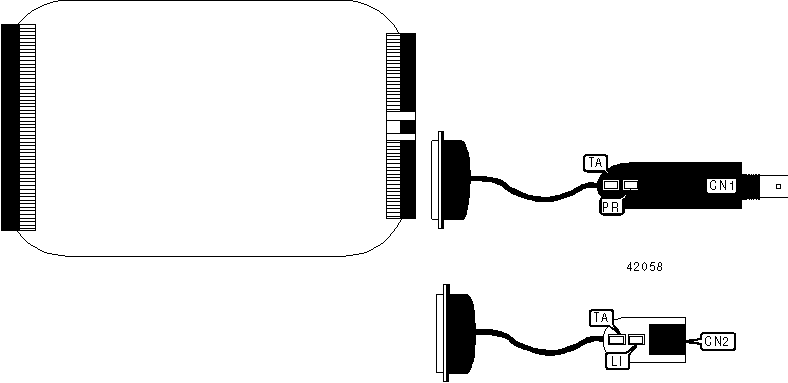

CONNECTIONS
Function	Label	Function	Label
RG-58A/U 50ohm coaxial	CN1	RJ-45 unshielded twisted pair	CN2

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
TA	Yellow	On	Data is being transmitted/received
TA	Yellow	Off	Data is not being transmitted/received
PR	Green	On	Power is on
PR	Green	Off	Power is off
LI	Green	On	10Base-T UTP link is good
LI	Green	Off	10Base-T UTP link is broken
LI	Orange	On	100Base-TX UTP link is good
LI	Orange	Off	100Base-TX UTP link is broken

MISCELLANEOUS TECHNICAL NOTES

The 15-pin connector must be attached to the set of pins to the left side (with the company logo facing up) of the end of the card.
