Device Type	Internal Tape Drive
Interface	SCSI-2
Format	DDS, DDS-DC
Sustained Transfer Rate	Unidentified
Size	3.5 in. half height 5.25 in. half height (with bezel)

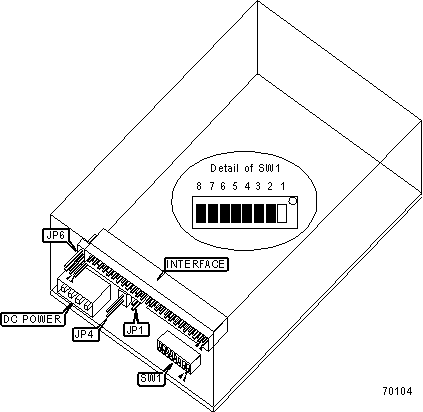

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP6	Unidentified
»	SCSI 2 mode enable	SW1/4	On
	SCSI 1 mode enabled	SW1/4	Off
»	Parity check disabled	SW1/5	Off
	Parity check enabled	SW1/5	On
»	Compression enabled	SW1/6	Off
	Compression disabled	SW1/6	On
»	Factory configured - do not alter	SW1/7	Unidentified
»	Self-test diagnostics disabled	SW1/8	Off
	Self-test diagnostics enabled	SW1/8	On
Note: The tape control software provided has the ability to override SW1/6, regardless of its position. For model C4320RT, SW1/6 is reserved and should be left in the Off position.

DRIVE SELECT ID
Drive ID		SW1/1	SW1/2	SW1/3
»	0	Off	Off	Off
	1	On	Off	Off
	2	Off	On	Off
	3	On	On	Off
	4	Off	Off	On
	5	On	Off	On
	6	Off	On	On
	7	On	On	On

TERMINATION POWER SELECTION
Setting		JP4
»	TERMPWR supplied by drive	Open
	TERMPWR supplied by SCSI interface to drive	Closed

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity
Conner DAT Data Cassette (60 merter)	Unidentified
Conner DAT Data Cassette (90 merter)	Unidentified

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Drive receiving power and operation normal
LED1	Green	Slow Flash	Inserted cassette generating errors (warning only)
LED1	Green	Rapid Flash	Drive could not write correctly to tape
LED1	Green	Off	No drive power
LED2	Amber	On	Drive reading from or writing to tape
LED2	Amber	Rapid Flash	Condensation detected in drive, or hardware fault occured
LED2	Amber	Off	Drive not active
Note: If LED1 is flashing slowly while LED2 is On, a prerecorded audio cassette is loaded and is being played automatically.
