Device Type	Internal Tape Drive
Interface	IDE(AT)
Format	HP Colorado 5GB, QIC-WIDE
Sustained Transfer Rate	1.17 MBPS
Size	3.5 in. half height

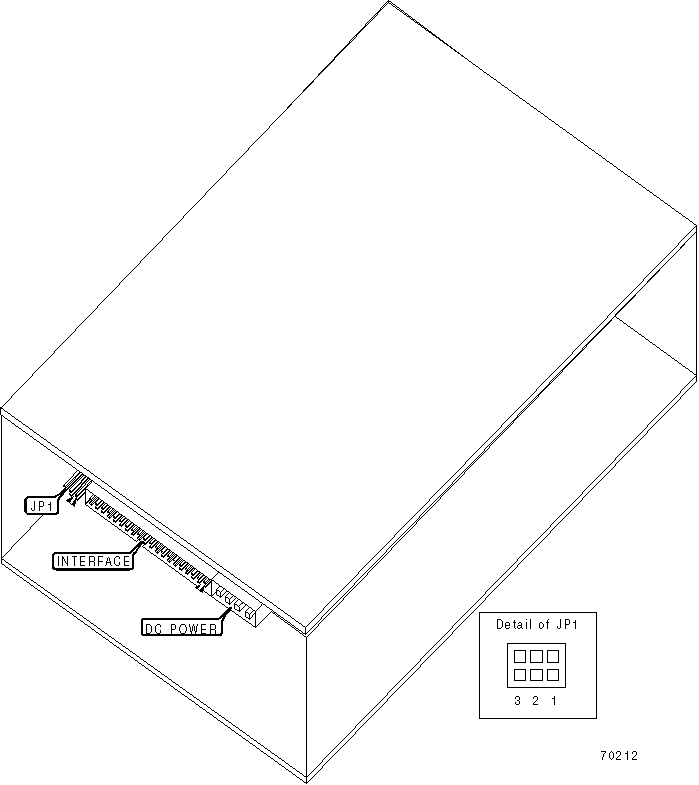

View	Top

IDE MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Master in two drive system	Closed	Open	Open
Slave in two drive system	Open	Closed	Open
Master/Slave determined by Cable Select	Open	Open	Closed

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity Without Compression	Capacity With Compression
HP Colorado 5GB	2.5GB	5GB
