HEWLETT-PACKARD COMPANY
HP35470A
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
DDS |
|
Sustained Transfer Rate |
183 KBPS |
|
Size |
3.5 in. half height |
|
View |
Top |
|

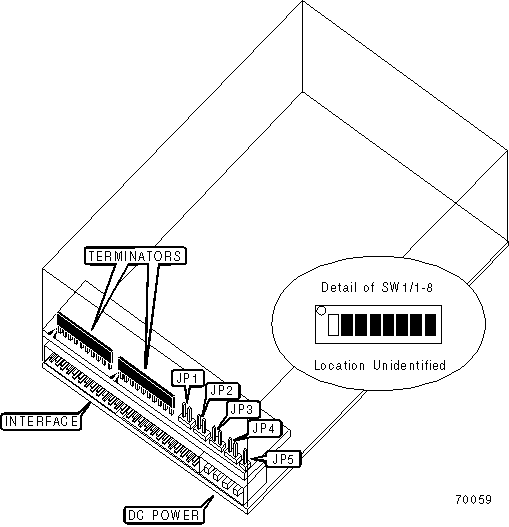

USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP5 |
Unidentified |
|
DRIVE SELECT ID | |||
|
Drive ID |
JP2 |
JP3 |
JP4 |
|
0 |
Open |
Open |
Open |
|
1 |
Open |
Open |
Closed |
|
2 |
Open |
Closed |
Open |
|
3 |
Open |
Closed |
Closed |
|
4 |
Closed |
Open |
Open |
|
5 |
Closed |
Open |
Closed |
|
6 |
Closed |
Closed |
Open |
|
7 |
Closed |
Closed |
Closed |
|
TERMINATION POWER SELECTION | ||
|
Setting |
JP1 | |
| » |
TERMPWR supplied by drive |
Open |
|
TERMPWR supplied by drive to SCSI interface |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | |
|
Tape |
Capacity |
|
60 meter DDS cartridge |
1.3GB |
|
90 meter DDS cartridge |
2.0GB |
|
DIAGNOSTIC LED(S) | ||
|
LED1 (Green/Yellow) |
LED2 (Green/Yellow) |
Condition |
|
Off |
Off |
No power/drive Idle, no cartridge |
|
Off |
Flash (Green) |
No cartridge, drive active |
|
On (Green) |
Flash (Green) |
Cartridge present, drive active |
|
On (Green) |
On (Green) |
Cartridge loaded, drive idle |
|
On (Green) |
Off |
Cartridge present but not loaded |
|
Pulse (Green) |
Pulse (Green) |
Cartridge loading or unloading |
|
Pulse (Yellow) |
Pulse (Green) |
Write protect cartridge loading or unloading |
|
On (Yellow) |
On (Green) |
Write protect cartridge loaded, drive idle |
|
On (Yellow) |
Off |
Write protect cartridge present but not loaded |
|
On (Yellow) |
On (Green) |
Write protect cartridge loaded, drive active |
|
On (Green) |
Pulse (Green) |
Caution (media warning) - cleaning tape required |
|
Pulse (Yellow) |
On (Yellow) |
Self test failed |
|
Pulse (Yellow) |
Pulse (Yellow) |
Drive powering on |
|
MISCELLANEOUS TECHNICAL NOTES |
|
Dip switch ‘SW1’ is not used on model HP35470A. All switches should be set to ON, or all switches should be set to OFF. |
