Device Type

Internal Tape Drive

Interface

SCSI-2

Format

DDS-2, DDS-DC

Sustained Transfer Rate

1 MBPS (with compression)

Size

5.25 in. half height (with bezel)

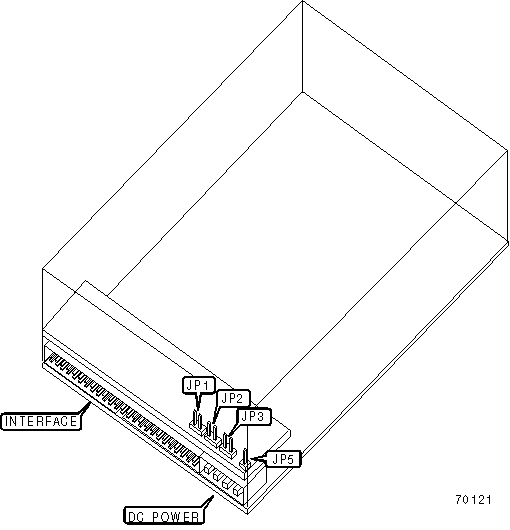

View

Top

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

JP5

Unidentified

Note: Jumper JP5 causes data compression on writes to be disabled at power on if connected to a ground. A host may override this unless "switch 2" on underside of drive is set to OFF. Exact orientation of "switch 2" is unidentified.

DRIVE SELECT ID

Drive ID

JP1

JP2

JP3

0

Open

Open

Open

1

Open

Open

Closed

2

Open

Closed

Open

3

Open

Closed

Closed

4

Closed

Open

Open

5

Closed

Open

Closed

6

Closed

Closed

Open

7

Closed

Closed

Closed

MANUFACTURERS RECOMMENDED MEDIA

Tape

Capacity Without Compression

Capacity With Compression

60 meter DDS cartridge

1.3 GB

2.6 GB

90 meter DDS cartridge

2.0 GB

4.0 GB

120 meter DDS-2 cartridge

4.0 GB

8.0 GB

DIAGNOSTIC LED(S)

LED1 (green)

LED2 (yellow)

Condition

Off

Off

No power/drive Idle, no cartridge

On

Off

Cartridge loaded, No Activity

Flash

Off

Cartridge loaded, Activity

Pulse

Off

Loading/Unloading/Ejecting/Power-On

Off

On

Self Test Failure

Off

Pulse

No Cartridge, Caution (cleaning required)

On

Pulse

Cartridge loaded, Caution (cleaning required)

Flash

Pulse

Cartridge loaded, Drive Active, Caution (cleaning required)

Pulse

Pulse

Cartridge loading/unloading, Caution (cleaning required)
