Device Type	Internal Tape Drive
Interface	SCSI-2
Format	Travan TR-4
Sustained Transfer Rate	514 KBPS
Size	5.25 in. half height

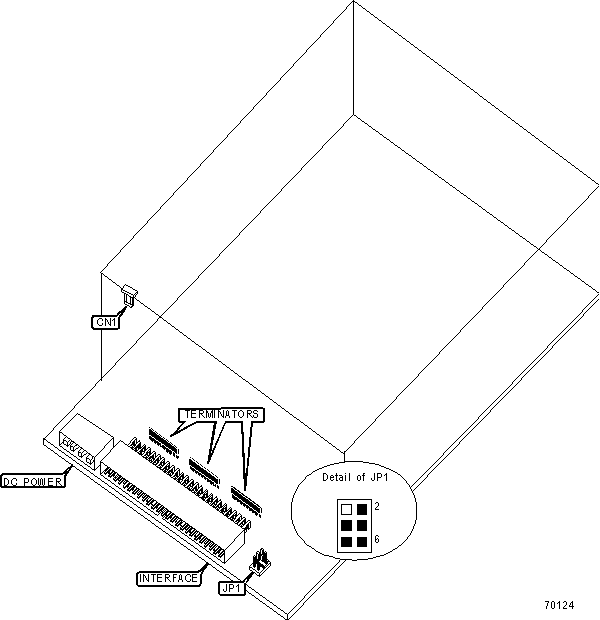

View	Bottom

CONNECTIONS
Function	Label
Ground connector	CN1

DRIVE SELECT ID
Drive ID		JP1
	0	Pins 1 & 3 closed.
	1	Pins 1 &3, 5 & 6 closed
	2	Pins 3 & 4 closed
	3	Pins 3 & 4, 5 & 6 closed
»	4	Pins 1 & 2, 3 & 5 closed
	5	Pins 1 & 2, 5 & 6 closed
	6	Pins 1 & 2, 3 & 4 closed
	7	Unidentified

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity Without Compression	Capacity With Compression
(Travan TR-4 - 740ft.)	4.0 GB	8.0 GB
