IBM CORPORATION
OPTIONS 10/20 GB, NS TAPE
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
TRAVAN-4 |
|
Sustained Transfer Rate |
60 MBPS |
|
Size |
3.5 in. third height |
|
View |
Top |
|

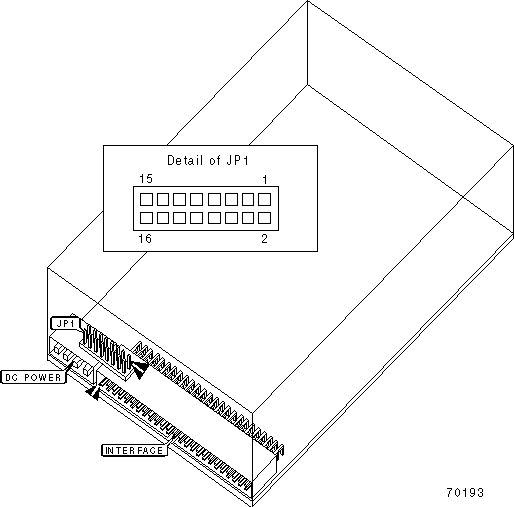

USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parity check disabled |
JP1/Pins 7 & 8 |
Open |
|
Parity check enabled |
JP1/Pins7 & 8 |
Closed | |
| » |
Factory configured - do not alter |
JP1/Pins 9 & 10 |
Unidentified |
| » |
Factory configured - do not alter |
JP1/Pins 11 & 12 |
Unidentified |
| » |
Termination enabled |
JP1/Pins 13 & 14 |
Closed |
|
Termination disabled |
JP1/Pins 13 & 14 |
Open | |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/Pins 1 & 2 |
JP1/Pins 3 & 4 |
JP1/Pins 5 & 6 | |
|
0 |
Open |
Open |
Open | |
| » |
1 |
Closed |
Open |
Open |
|
2 |
Open |
Closed |
Open | |
|
3 |
Closed |
Closed |
Open | |
|
4 |
Open |
Open |
Closed | |
|
5 |
Closed |
Open |
Closed | |
|
6 |
Open |
Closed |
Closed | |
|
7 |
Closed |
Closed |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | |
|
Tape |
Maximum Capacity |
|
8mm. QIC-3095 |
2 GB & 4 GB |
|
8mm. QIC-3220 |
10 GB |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Drive is active |
|
LED1 |
Green |
Off |
Drive is not active |
