Device Type	Tape Drive
Interface	SCSI-2
Format	DDS-2
Sustained Transfer Rate	366 KBPS (compression disabled) / 732 KBPS (compression enabled)
Size	3.5 in. half height

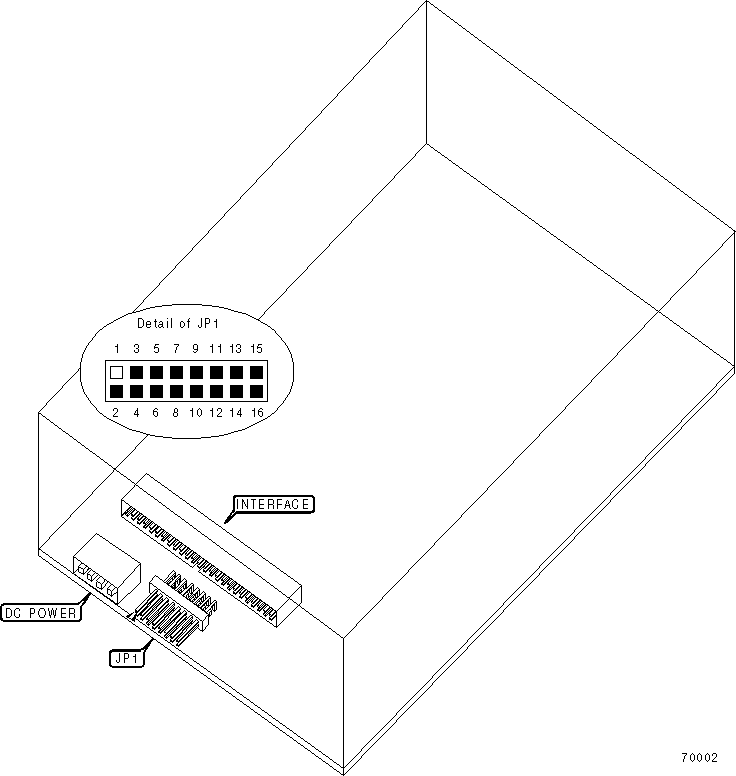

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Compression disabled	JP1/Pins 7 & 8	Closed
	Compression enabled	JP1/Pins 7 & 8	Open
»	SCSI parity enabled	JP1/Pins 9 & 10	Closed
	SCSI parity disabled	JP1/Pins 9 & 10	Open
»	Factory configured - do not alter.	JP1/Pins 11 & 12	Unidentified
»	Termination enabled	JP1/Pins 13 & 14	Closed
	Termination disabled	JP1/Pins 13 & 14	Open

DRIVE SELECT ID
Drive ID	JP1/Pins 1 & 2	JP1/Pins 3 & 4	JP1/Pins 5 & 6
0	Open	Open	Open
1	Open	Open	Closed
2	Open	Closed	Open
3	Open	Closed	Closed
4	Closed	Open	Open
5	Closed	Open	Closed
6	Closed	Closed	Open
7	Closed	Closed	Closed

TERMINATION POWER SELECTION
Setting		JP1/Pins 15 & 16
»	TERMPWR supplied by drive	Closed
	TERMPWR supplied by SCSI interface to drive	Open

MANUFACTURERS RECOMMENED MEDIA
Tape	Capacity Without Compression	Capacity With Compression
Sony DG 60 meter DDS cartridge	Unidentified	Unidentified
Sony DG 90 meter DDS cartridge	Unidentified	Unidentified
Sony DGD 120 meter DDS-2 cartridge	4.0 GB	8.0 GB

MISCELLANEOUS TECHNICAL NOTES

Exact location of terminating resistors is unidentified.
