TANDBERG DATA
PANTHER 250 SI, PANTHER 525 SI, PANTHER 1200 SI, PANTHER 2500 SI, PANTHER 5000 SI
|
Device Type |
Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
QIC-150 (PANTHER 250 SI), QIC-525 (PANTHER 525 SI), QIC-1000 (PANTHER 1200 SI), QIC-2GB (PANTHER 2500 SI), QIC-2GB (PANTHER 5000 SI) |
|
Sustained Transfer Rate |
90KBPS (PANTHER 250 SI); 200KBPS (PANTHER 525 SI); 300KBPS (PANTHER 1200 SI, PANTHER 2500 SI, PANTHER 5000 SI) |
|
Size |
5.25 in. half height |
|
View |
Top |
|

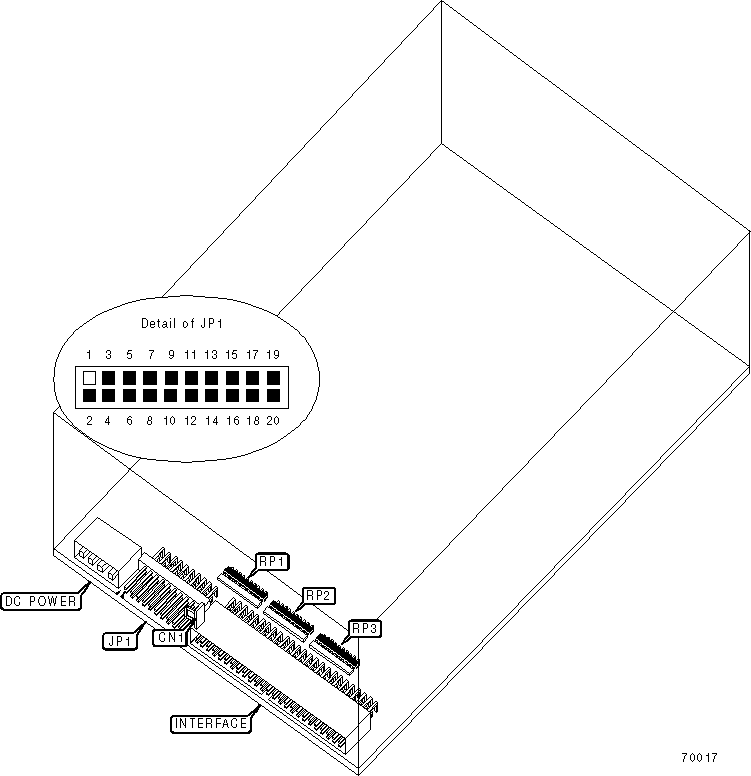

CONNECTIONS | |
|
Function |
Label |
|
Ground connector |
CN1 |
|
Note: CN1 not present on all models. | |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter. (Reserved for testing) |
JP1/Pins 1 & 2 |
Unidentified |
| » |
Factory configured - do not alter. |
JP1/Pins 3 & 4 |
Unidentified |
| » |
Factory configured - do not alter. |
JP1/Pins 5 & 6 |
Unidentified |
| » |
Factory configured - do not alter. |
JP1/Pins 7 & 8 |
Unidentified |
| » |
Factory configured - do not alter. |
JP1/Pins 9 & 10 |
Unidentified |
| » |
Factory configured - do not alter. (Parity enable/disable) |
JP1/Pins 11 & 12 |
Unidentified |
|
DRIVE SELECT ID | ||||
|
Drive ID |
JP1/Pins 13 & 14 |
JP1/Pins 15 & 16 |
JP1/Pins 17 & 18 | |
|
0 |
Open |
Open |
Open | |
|
1 |
Open |
Open |
Closed | |
| » |
2 |
Open |
Closed |
Open |
|
3 |
Open |
Closed |
Closed | |
|
4 |
Closed |
Open |
Open | |
|
5 |
Closed |
Open |
Closed | |
|
6 |
Closed |
Closed |
Open | |
|
7 |
Closed |
Closed |
Closed | |
|
TERMINATION POWER SELECTION | ||
|
Setting |
JP1/Pins 19 & 20 | |
| » |
TERMPWR supplied by drive |
Closed |
|
TERMPWR supplied by SCSI interface to drive |
Open | |
|
MANUFACTURERS RECOMMENED MEDIA | |||
|
Drive |
Tape |
Capacity Without Compression |
Capacity With Compression |
|
PANTHER 250 SI |
DC-6150 |
155MB |
N/A |
|
PANTHER 250 SI |
DC-6250; QD-6250 |
250MB |
N/A |
|
PANTHER 525 SI |
DC-6150 |
155MB |
N/A |
|
PANTHER 525 SI |
DC-6250 |
250MB |
N/A |
|
PANTHER 525 SI |
DC-6320 |
320MB |
N/A |
|
PANTHER 525 SI |
DC-6525; QD-6525 |
525MB |
N/A |
|
PANTHER 1200 SI |
DC-6150 |
155MB |
N/A |
|
PANTHER 1200 SI |
DC-6250 |
250MB |
N/A |
|
PANTHER 1200 SI |
DC-6320 |
320MB |
N/A |
|
PANTHER 1200 SI |
DC-6525 |
525MB |
N/A |
|
PANTHER 1200 SI |
DC-9100/Magnus 1.0 |
1.0GB |
N/A |
|
PANTHER 1200 SI |
DC-9120/Magnus 1.2; QD-9120 |
1.2GB |
N/A |
|
PANTHER 2500 SI |
DC-6150 |
155MB |
N/A |
|
PANTHER 2500 SI |
DC-6250 |
250MB |
N/A |
|
PANTHER 2500 SI |
DC-6320 |
320MB |
N/A |
|
PANTHER 2500 SI |
DC-6525 |
525MB |
N/A |
|
PANTHER 2500 SI |
DC-9100/Magnus 1.0 |
1.0GB |
N/A |
|
PANTHER 2500 SI |
DC-9120/Magnus 1.2 |
1.2GB |
N/A |
|
PANTHER 2500 SI |
DC-9200/Magnus 2.0 |
2.0GB |
N/A |
|
PANTHER 2500 SI |
DC-9250; QD-9250 |
2.5GB |
5.0GB |
|
PANTHER 5000 SI |
DC-6150 |
155MB |
N/A |
|
PANTHER 5000 SI |
DC-6250 |
250MB |
N/A |
|
PANTHER 5000 SI |
DC-6320 |
320MB |
N/A |
|
PANTHER 5000 SI |
DC-6525 |
525MB |
N/A |
|
PANTHER 5000 SI |
DC-9100/Magnus 1.0 |
1.0GB |
N/A |
|
PANTHER 5000 SI |
DC-9120/Magnus 1.2 |
1.2GB |
N/A |
|
PANTHER 5000 SI |
DC-9200/Magnus 2.0 |
2.0GB |
N/A |
|
PANTHER 5000 SI |
DC-9250; QD-9250 |
2.5GB |
5.0GB |
|
Note: The following tapes are not supported by Tandberg Data drives: 1) DC9135, DC9210, DC9500, for models PANTHER 250/525/1200/2500/5000. 2) Any CD2000 type and Sony QW3080XL for models TDC 3520/3720. | |||
|
TERMINATING RESISTOR CONFIGURATION | |||
|
Function |
RP1 |
RP2 |
RP3 |
|
Termination enabled |
Terminator installed |
Terminator installed |
Terminator installed |
|
Termination disabled |
Terminator not installed |
Terminator not installed |
Terminator not installed |
