Device Type	External Tape Drive
Interface	SCSI-2
Format	DDS (STD62000N) DDS-DC (STD64000N) DDS-2 (STD68000N)
Sustained Transfer Rate	550KBPS 1,100KBPS (compressed - STD64000N and STD68000N only)
Size	Unidentified
View	Top

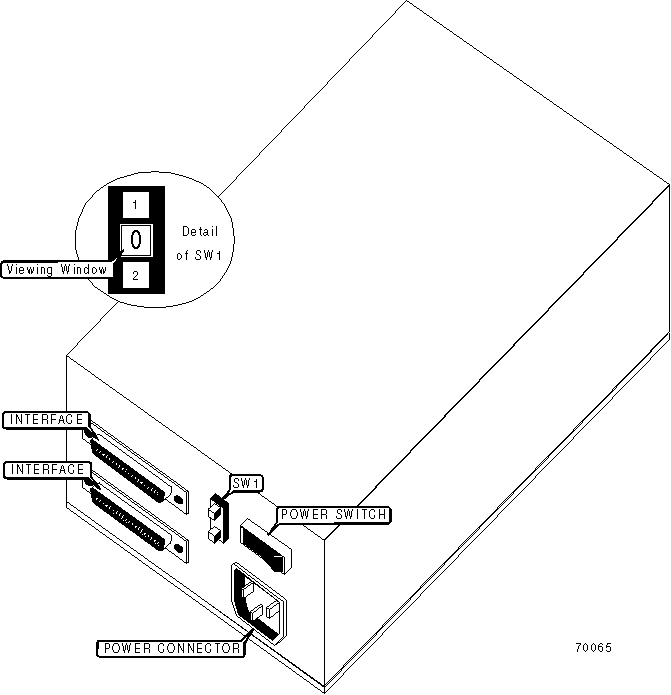

DRIVE SELECT ID

Note: SCSI ID is selected by activating SW1 until the desired number is displayed in the viewing window.

MANUFACTURERS RECOMMENDED MEDIA
Drive	Tape	Capacity Without Compression	Capacity With Compression
STD62000N	90 meter DDS DAT cartridge	2.0GB	N/A
STD64000N	90 meter DDS-DC DAT cartridge	2.0GB	4.0GB
STD68000N	90 meter DDS-DC DAT cartridge	2.0GB	4.0GB
STD68000N	120 meter DDS-2 DAT cartridge	4.0GB	8.0GB

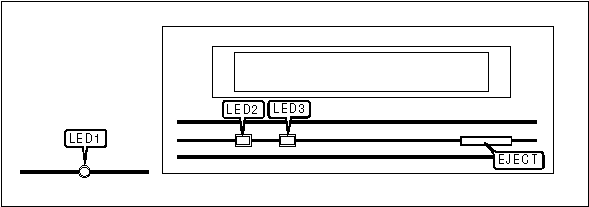

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Green	On	Drive is powered on
LED1	Green	Off	Drive is not powered on
LED2	Green	On	Cartridge is inserted and does not generate excessive errors
LED2	Green	Slow Flash	Cartridge is inserted but generates excessive errors (cleaning may be required)
LED2	Green	Fast Flash	Drive could not write to tape correctly - cleaning required
LED2	Green	Off	Cartridge not inserted
LED3	Yellow	On	Drive is reading or writing the tape
LED3	Yellow	Fast Flash	Hardware fault occurred
LED3	Yellow	Off	Drive not busy
Note: If LED1 flashes during Slow Flash of LED2, a prerecorded audio cartridge is inserted and is being played automatically. Use DDS DAT cleaning cartridges only.
