SEAGATE TECHNOLOGY, INC.
TST8000R-A
|
Device Type |
Tape Drive |
|
Interface |
ATAPI |
|
Format |
QIC-WIDE, Travan TR-4, Quarter Inch |
|
Sustained Transfer Rate |
600KBPS |
|
Size |
5.25 in. half height |
|

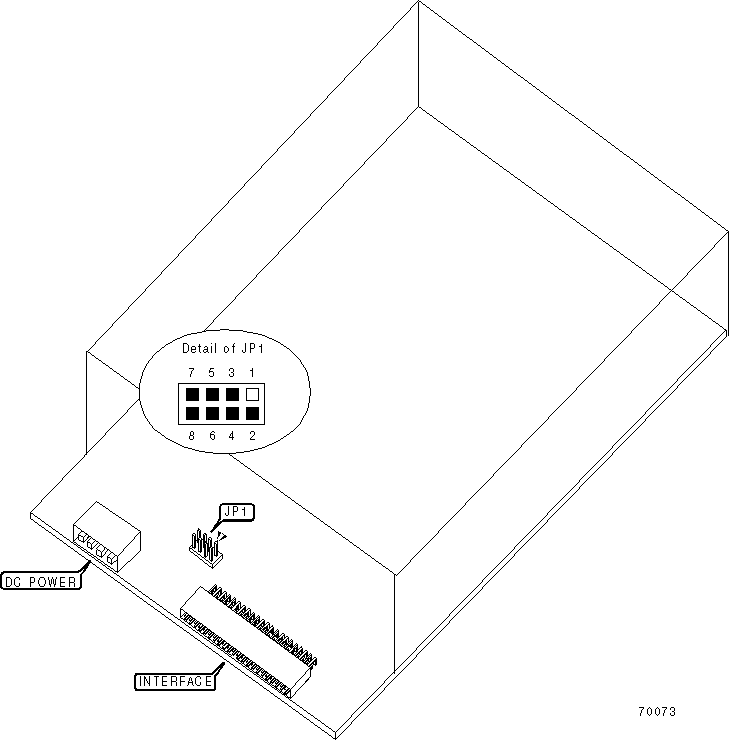

View |
Bottom |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP1/Pins 7 & 8 |
Unidentified |
|
IDE MASTER/SLAVE | ||
|
Setting |
JP1 | |
| » |
Drive is slave |
Pins 3 & 4 closed |
|
Drive is master |
Pins 5 & 6 closed | |
|
Master/Slave determined by cable select |
Pins 1 & 2 closed | |
|
MANUFACTURERS RECOMMENED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
Travan 740 Ft. (Conner® 8000 TR4; 3M® TR-4) |
4.0GB |
8.0GB |
|
Standard 900 Oe 400 Ft. (3M® miniMAGNUS 3080) |
1.6GB |
3.2GB |
|
QIC Wide 900 Oe 400 Ft. (Conner® 4000QT, or 8000QT; Sony® QW3080XLF, or QW3095XLF) |
2.0GB |
4.0GB |
|
DIAGNOSTIC LED(S) | |||
|
LED |
Color |
Status |
Condition |
|
LED1 |
Green |
On |
Drive is active |
|
LED1 |
Green |
Off |
Drive is not active |
