TECMAR
WANGDAT 1300, WANGDAT 2000, WANGDAT 2600
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI |
|
Format |
DDS |
|
Sustained Transfer Rate |
500KBPS |
|
Size |
5.25 in. half height |
|

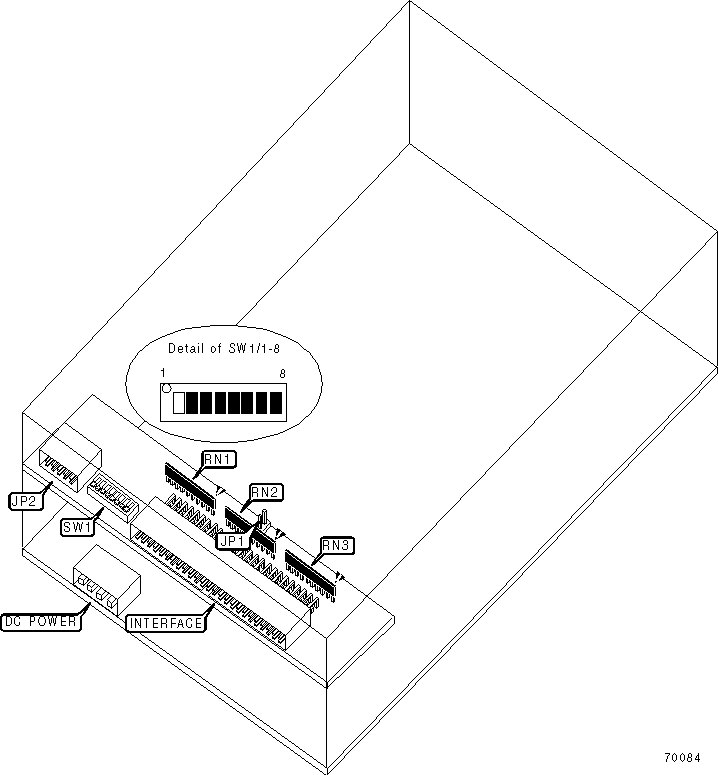

View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Factory configured - do not alter |
JP2/Pins 1-10 |
Unidentified |
| » |
Buffered mode software selectable |
SW1/1 |
Off |
|
Buffered mode not software selectable |
SW1/1 |
On | |
| » |
Compression enabled (not used on 1300) |
SW1/2 |
On |
|
Compression disabled (not used on 1300) |
SW1/2 |
Off | |
| » |
SCSI 1 mode enabled |
SW1/3 |
Off |
|
SCSI 2 mode enabled |
SW1/3 |
On | |
| » |
Prevent insertion and removal of CD’s by command or eject button |
SW1/4 |
Off |
|
Allow insertion and removal of CD’s by command or eject button |
SW1/4 |
On | |
| » |
Parity check enabled |
SW1/5 |
On |
|
Parity check disabled |
SW1/5 |
Off | |
|
TERMINATION | |||
|
Function |
RN1 |
RN2 |
RN3 |
|
Termination enabled |
Installed |
Installed |
Installed |
|
Termination disabled |
Not installed |
Not installed |
Not installed |
|
Note: ‘Installed’ means that a terminating resistor is installed at the prospective port, ‘Not installed’ means that a terminating resistor is not installed at the prospective port. | |||
|
DRIVE SELECT ID | ||||
|
Drive ID |
SW1/6 |
SW1/7 |
SW1/8 | |
|
0 |
Off |
Off |
Off | |
| » |
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off | |
|
3 |
On |
On |
Off | |
|
4 |
Off |
Off |
On | |
|
5 |
On |
Off |
On | |
|
6 |
Off |
On |
On | |
|
7 |
On |
On |
On | |
|
TERMINATION POWER SELECTION | ||
|
Setting |
JP1 | |
| » |
TERMPWR supplied by SCSI interface to drive |
Open |
|
TERMPWR supplied by drive |
Closed | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Drive |
Tape |
Capacity Without Compression |
|
WangDAT 1300 |
WangDAT 60 meter |
1.3 GB |
|
WangDAT 1300 |
WangDAT 90 meter |
2.0 GB |
|
WangDAT 1300 |
Maxell HS-4/60 |
1.3 GB |
|
WangDAT 1300 |
Maxell HS-4/90 |
2.0 GB |
|
WangDAT 1300 |
TDK DC4-60 |
1.3 GB |
|
WangDAT 1300 |
TDK DC4-90 |
2.0 GB |
|
WangDAT 1300 |
Fuji DG-90 |
2.0 GB |
|
WangDAT 1300 |
JVC DF-90 |
2.0 GB |
|
WangDAT 1300 |
KAO KD200 |
1.3 GB |
|
WangDAT 2000 |
WangDAT 60 meter |
3.7 GB |
|
WangDAT 2000 |
WangDAT 90 meter |
5.7 GB |
|
WangDAT 2000 |
Maxell HS-4/60 |
3.7 GB |
|
WangDAT 2000 |
Maxell HS-4/90 |
5.7 GB |
|
WangDAT 2000 |
TDK DC4-60 |
3.7 GB |
|
WangDAT 2000 |
TDK DC4-90 |
5.7 GB |
|
WangDAT 2000 |
Fuji DG-90 |
5.7 GB |
|
WangDAT 2000 |
JVC DF-90 |
5.7 GB |
|
WangDAT 2000 |
KAO KD200 |
3.7 GB |
|
WangDAT 2600 |
WangDAT 60 meter |
3.7 GB |
|
WangDAT 2600 |
Maxell HS-4/60 |
3.7 GB |
|
WangDAT 2600 |
TDK DC4-60 |
3.7 GB |
|
WangDAT 2600 |
KAO KD200 |
3.7 GB |
