Device Type	Internal Tape Drive
Interface	Floppy
Format	QIC-3020-MC
Sustained Transfer Rate	500KBPS, 2MBPS
Size	3.5 in. quarter height

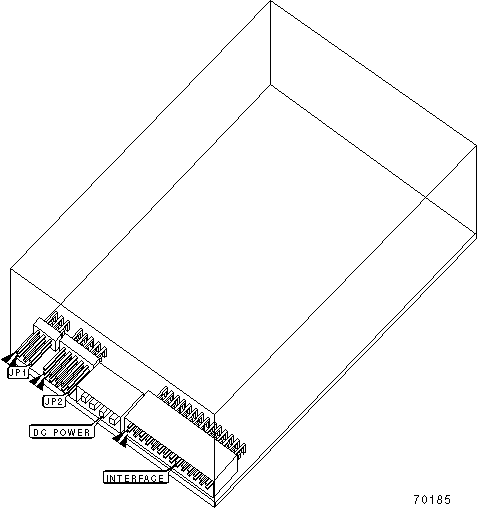

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity with Compression
MC-3000XL TAUMAT	1.4GB
MC-3000XL QIC-3020	1.4GB
QIC-3020 MC	1.4GB

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Tape is busy
LED1	Unidentified	Off	Tape is not in use
