Device Type	Internal Tape/Floppy Drive
Interface	Floppy
Format	QIC-3010-MC, 3.25" High-Density floppy disk
Sustained Transfer Rate	500KBPS, 1MBPS
Size	3.5 in. third height

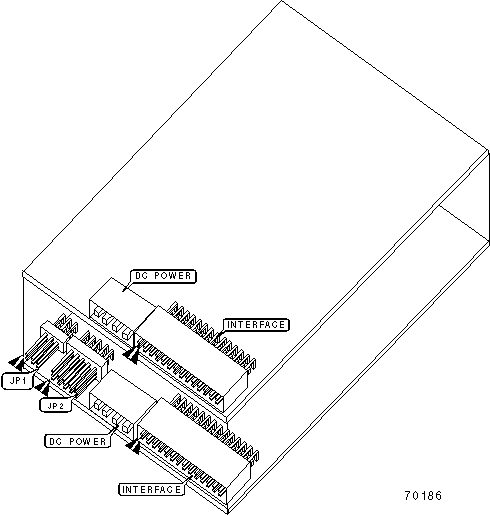

View	Top

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

MANUFACTURERS RECOMMENDED MEDIA
Tape	Capacity with Compression
MC-3000	680 MB
MC-3000	500 MB
MC-3000XL	680 MB
QIC-3010	680 MB
QIC-3010	500 MB
QIC-3020 MC	680 MB
3.25 in. High-Density floppy disk	1.44MB

DIAGNOSTIC LED(S)
LED	Color	Status	Condition
LED1	Unidentified	On	Tape drive is busy
LED1	Unidentified	Off	Tape drive is not in use
LED2	Unidentified	On	Floppy drive is busy
LED2	Unidentified	Off	Floppy drive is not in use
