SEAGATE TECHNOLOGY, INC.
PEREGRINE 4586NP
|
Device Type |
Internal Tape Drive |
|
Interface |
SCSI-2 |
|
Format |
DDS-2, DDS-DC |
|
Sustained Transfer Rate |
400 KBPS (compressed 800 KBPS) |
|
Size |
5.25 in. half height |
|

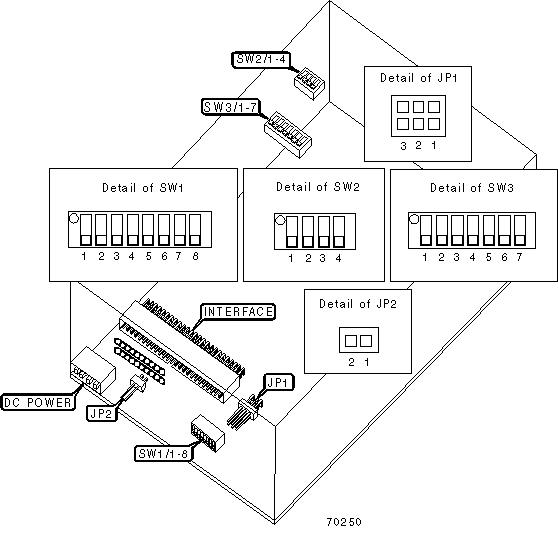

View |
Top |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Termination disabled |
JP2 |
Open |
|
Termination enabled |
JP2 |
Closed | |
| » |
All mode enabled |
SW1/4 |
On |
|
MRS mode enabled |
SW1/4 |
Off | |
| » |
Parity check disabled |
SW1/5 |
Off |
|
Parity check enabled |
SW1/5 |
On | |
| » |
DDS-DC pass through mode enabled |
SW1/6 |
Off |
|
DDS pass through mode enabled |
SW1/6 |
On | |
| » |
Factory configured - do not alter |
SW1/7 |
Reserved |
| » |
Self test disabled |
SW1/8 |
Off |
|
Self test enabled |
SW1/8 |
On | |
| » |
Drive mounted horizontaly |
SW2/1 |
Off |
|
Drive mounted verticaly |
SW2/1 |
On | |
| » |
Automatic insertion of first cartridge enabled |
SW2/2 |
On |
|
Automatic insertion of first cartridge disabled |
SW2/2 |
Off | |
| » |
Factory configured - do not alter |
SW2/3 |
Reserved |
| » |
Factory configured - do not alter |
SW2/4 |
Reserved |
| » |
Continuous cycle disabled |
SW3/3 |
Off |
|
Continuous cycle enabled |
SW3/3 |
On | |
| » |
Display intensity light |
SW3/4 |
On |
|
Display intensity normal |
SW3/4 |
Off | |
| » |
Self-test sequence disabled |
SW3/5 |
Off |
|
Self-test sequence enabled |
SW3/5 |
On | |
| » |
Factory configured - do not alter |
SW3/6 |
Reserved |
| » |
Factory configured - do not alter |
SW3/7 |
Reserved |
|
EXTERNAL SCSI ID SELECTION | ||||
|
SCSI ID |
JP1/1 |
JP1/2 |
JP1/3 | |
| » |
0 |
Off |
Off |
Off |
|
1 |
Off |
Off |
On | |
|
2 |
Off |
On |
Off | |
|
3 |
Off |
On |
On | |
|
4 |
On |
Off |
Off | |
|
5 |
On |
Off |
On | |
|
6 |
On |
On |
Off | |
|
7 |
On |
On |
On | |
|
Note: If SCSI ID is set using SW1/1 - SW1/3, then the external SCSI ID (JP1) must be set to 0. | ||||
|
SCSI ID SELECTION | ||||
|
SCSI ID |
SW1/1 |
SW1/2 |
SW1/3 | |
| » |
0 |
Off |
Off |
Off |
|
1 |
Off |
Off |
On | |
|
2 |
Off |
On |
Off | |
|
3 |
Off |
On |
On | |
|
4 |
On |
Off |
Off | |
|
5 |
On |
Off |
On | |
|
6 |
On |
On |
Off | |
|
7 |
On |
On |
On | |
|
Note: If SCSI ID is set using SW1/1 - SW1/3, then the external SCSI ID (JP1) must be set to 0. | ||||
|
LANGUAGE SELECTION | |||
|
Language |
SW3/1 |
SW3/2 | |
| » |
English |
On |
Off |
|
French |
Off |
On | |
|
German |
Off |
Off | |
|
Spanish |
On |
On | |
|
MANUFACTURERS RECOMMENDED MEDIA | ||
|
Tape |
Capacity Without Compression |
Capacity With Compression |
|
90 meter DDS-2 DAT cartridge |
24 GB |
48 GB |
|
120 meter DDS-2 DAT cartridge |
48 GB |
96 GB |
