ADDONICS TECHNOLOGIES CORPORATION
PORTABLE 16-BIT CD (PCDS)
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
4x/6x |
|
Formats Supported Read |
CD-XA, Photo-CD, CD-DA, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book |
|

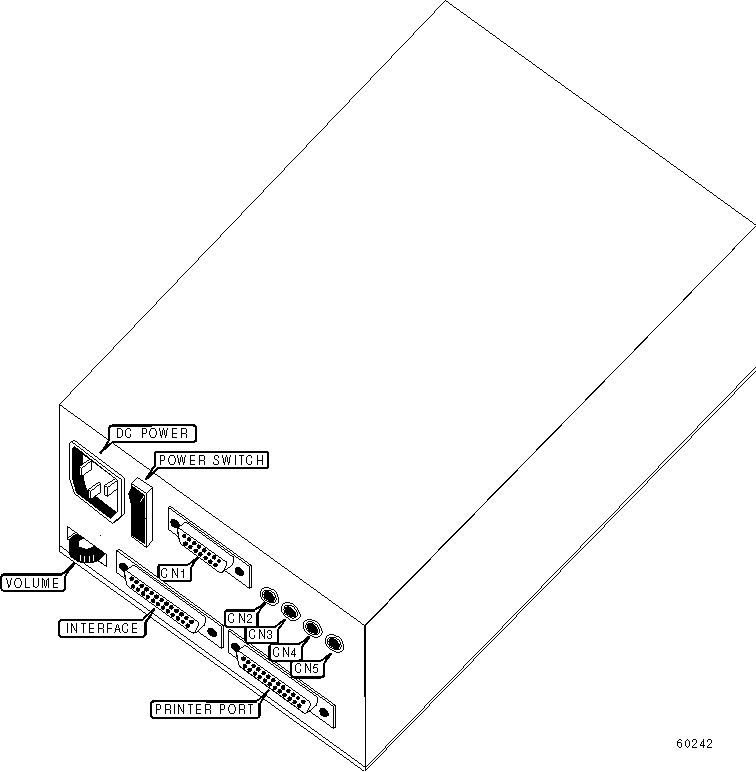

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin MIDI port |
CN1 |
Speaker connector |
CN4 |
|
Line in |
CN2 |
Microphone jack |
CN5 |
|
Line out |
CN3 | ||
