20X MAX. SPEED CD-ROM

ACER, INC.

Device Type

CD-ROM

Interface

ATAPI

Spin Rate (Read/Write)

20x

Formats Supported Read

CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 & Mode 2), Photo-CD(single & multisession), Video CD, Red & Yellow Book, CD-Plus, CD-Extra, I-trax, Pre-gap CD

View

Top

CONNECTIONS

Function

Label

Function

Label

Audio out connector

CN1

Digital output connector

CN2

USER CONFIGURABLE SETTINGS

Setting

Label

Position

»
Factory configured – do not alter. (Reserved for testing)

JP2

Unidentified

ATAPI MASTER/SLAVE

Setting

JP1

Drive is master

Pins 1 & 2 closed

Drive is slave

Pins 3 & 4 closed

Master/slave determined by cable select

Pins 5 & 6 closed

Device Type	CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	20x
Formats Supported Read	CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 & Mode 2), Photo-CD(single & multisession), Video CD, Red & Yellow Book, CD-Plus, CD-Extra, I-trax, Pre-gap CD
View	Top

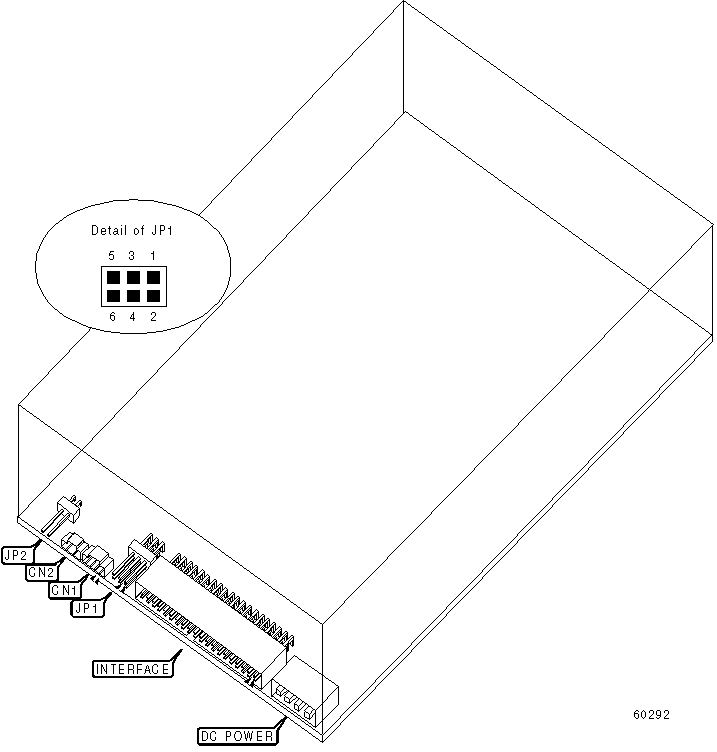

CONNECTIONS
Function	Label	Function	Label
Audio out connector	CN1	Digital output connector	CN2

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured – do not alter. (Reserved for testing)	JP2	Unidentified

ATAPI MASTER/SLAVE
Setting	JP1
Drive is master	Pins 1 & 2 closed
Drive is slave	Pins 3 & 4 closed
Master/slave determined by cable select	Pins 5 & 6 closed
