Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate (Read/Write)	2x Write, 6x Read
Formats Supported Read	CD-XA, CD-DA, CD-I, Photo-CD, CD-Extra
Formats Supported Write	CD-DA, CD-I, Photo-CD, CD-Extra

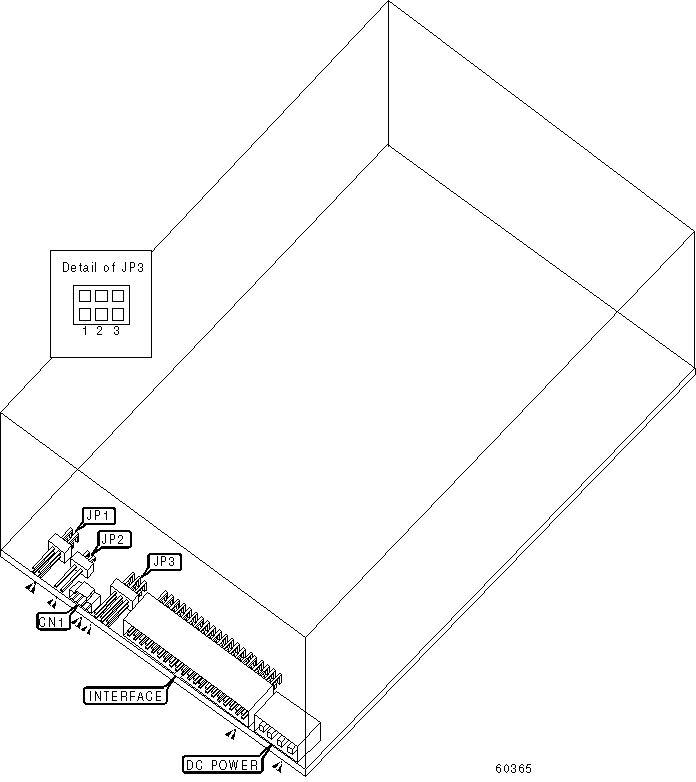

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	JP1	Unidentified
»	Factory configured - do not alter	JP2	Unidentified

ATAPI MASTER/SLAVE
Setting	JP3/1	JP3/2	JP3/3
Master/Slave determined by Cable Select	Closed	Open	Open
Single drive only	Open	Open	Closed
Master in two drive system	Open	Open	Closed
Slave in two drive system	Open	Closed	Open
