CREATIVE LABS, INC.
OMNICD
|
Device Type |
CD-ROM |
|
Interface |
SCSI |
|
Spin Rate |
Unidentified |
|
Formats Supported |
Unidentified |
|

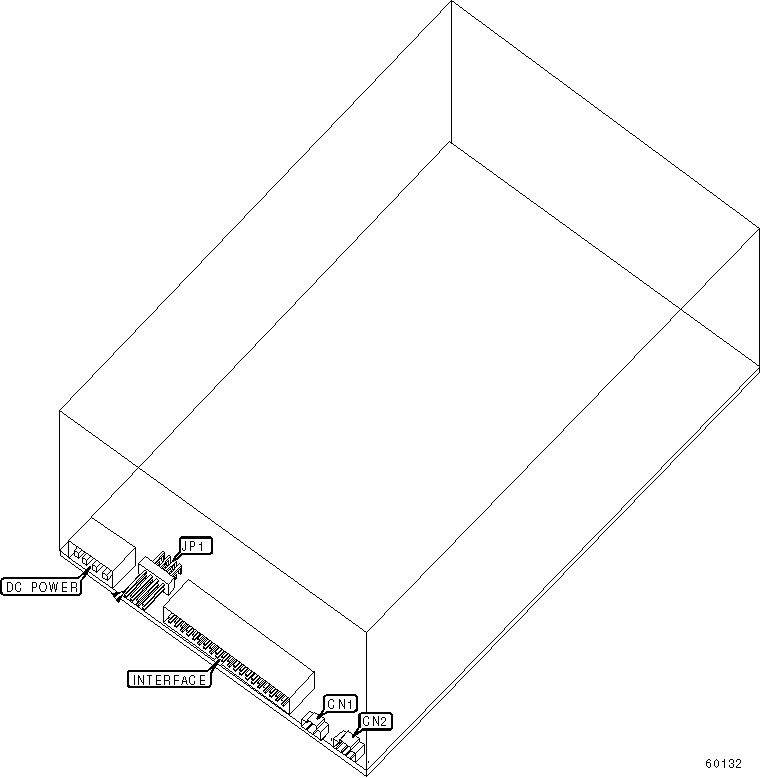

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
EIAJ connector |
CN1 |
Digital audio connector |
CN2 |
|
DRIVE ID SELECTION | ||||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
JP1/4 |
|
0 |
Closed |
Open |
Open |
Open |
|
1 |
Open |
Closed |
Open |
Open |
|
2 |
Open |
Open |
Closed |
Open |
|
3 |
Open |
Open |
Open |
Closed |
