CREATIVE LABS, INC.
12X SPEED CD-ROM DRIVE (CD-1220E)
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
12x |
|
Size |
5.25 in. half height |
|
Formats Supported |
Photo-CD (other formats may be supported) |
|

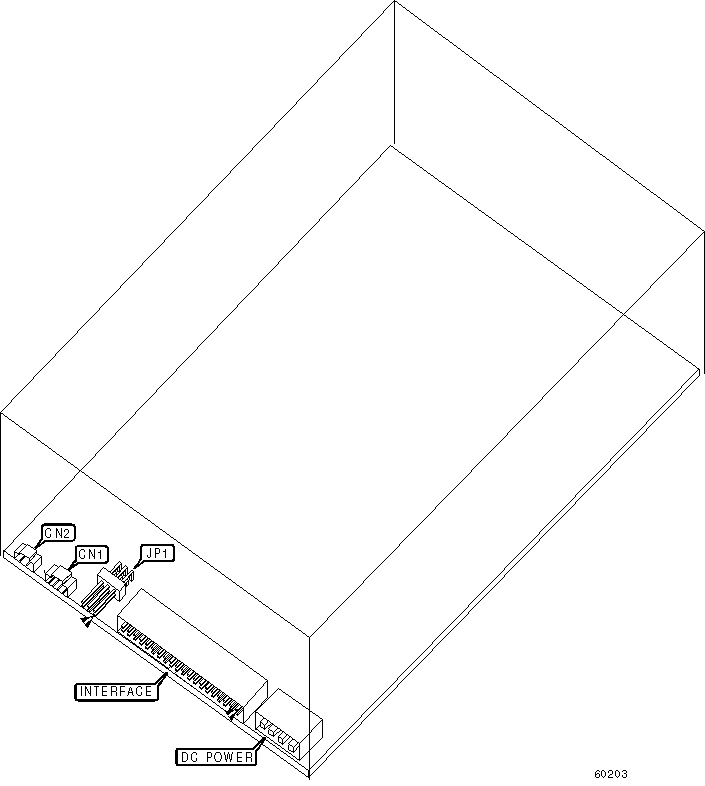

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Analog audio out |
CN1 |
Digital audio out |
CN2 |
|
ATAPI MASTER/SLAVE SELECTION | |||
|
Setting |
JP1/jumper 1 |
JP1/jumper 2 |
JP1/jumper 3 |
|
Single drive only |
Closed |
Open |
Open |
|
Master in two drive system |
Closed |
Open |
Open |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Master/Slave determined by Cable Select (CSEL) |
Open |
Open |
Closed |
