CREATIVE LABS, INC.
24X MAX CD-ROM (CD-2422E)
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
24x |
|
Formats Supported |
CD-XA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD, Orange book II, CD-EXTRA |
|

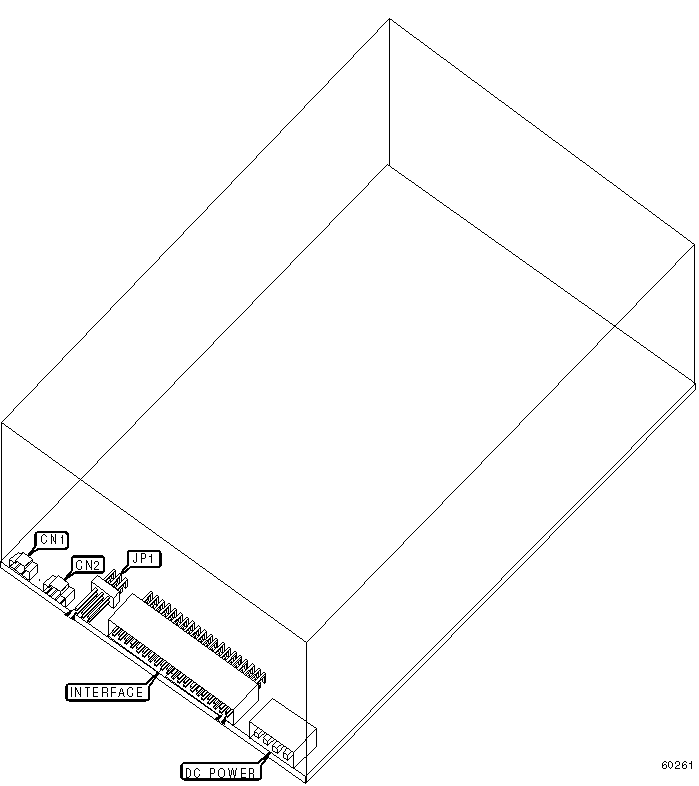

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Digital audio out |
CN1 |
Audio line out |
CN2 |
|
ATAPI MASTER/SLAVE | |||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
Single drive only |
Open |
Open |
Closed |
|
Master in two drive system |
Open |
Open |
Closed |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Master/Slave determined by Cable Select |
Closed |
Open |
Open |
