Device Type	Internal CD-ROM
Interface	ATAPI
Spin Rate	6x
Formats Supported	CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode 2), Photo-CD, Video CD

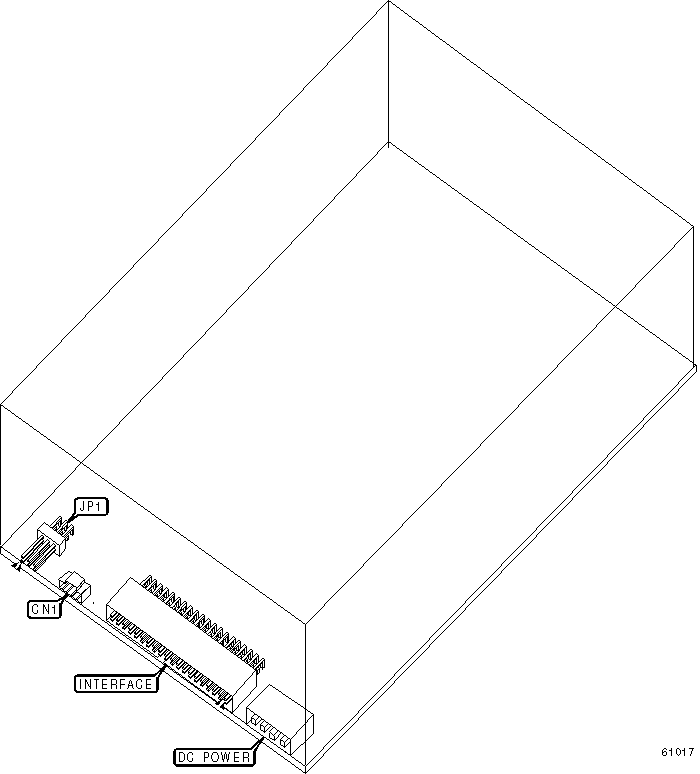

View	Top

CONNECTIONS
Function	Label
Audio line out	CN1

ATAPI MASTER/SLAVE
Setting	JP1/1	JP1/2	JP1/3
Single drive only	Open	Open	Closed
Master in two drive system	Open	Open	Closed
? Slave in two drive system	Open	Closed	Open
Master/Slave determined by Cable Select	Closed	Open	Open
