GOLDSTAR ELECTRONICS INTERNATIONAL, INC.
GCD-R580B
|
Device Type |
CD-ROM |
|
Interface |
ATAPI |
|
Spin Rate |
8x |
|
Formats Supported |
CD-XA (Mode 1 & Mode 2), CD-DA, CD-I FMV, Photo-CD, Video CD, CD-plus, MPC-III |
|

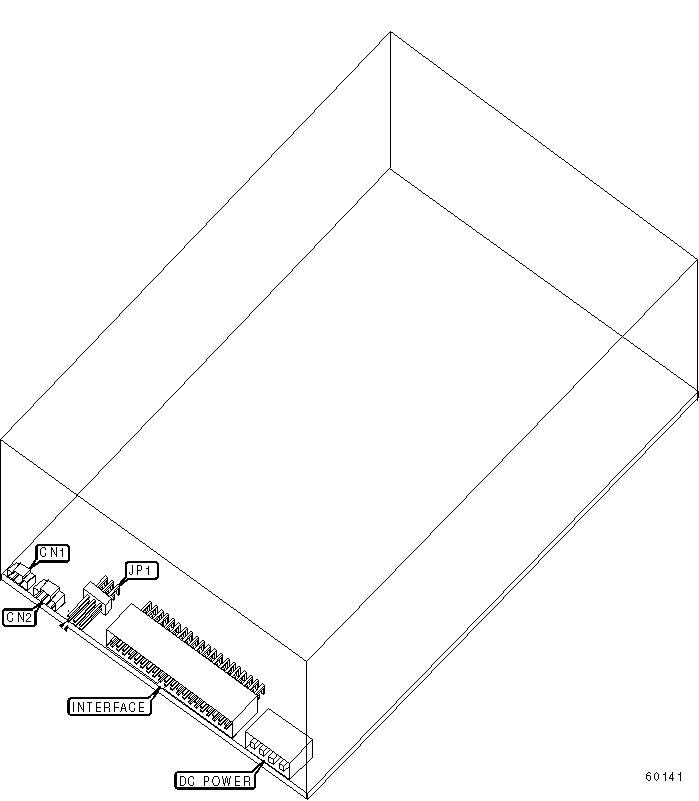

View |
Top |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Digital audio line out |
CN1 |
Analog audio line out |
CN2 |
|
ATAPI MASTER/SLAVE | |||
|
Setting |
JP1/1 |
JP1/2 |
JP1/3 |
|
Single drive only |
Open |
Open |
Closed |
|
Master in two drive system |
Open |
Open |
Closed |
|
Slave in two drive system |
Open |
Closed |
Open |
|
Cable Select |
Closed |
Open |
Open |
