Device Type	CD-ROM
Interface	ATAPI
Spin Rate	Unidentified
Formats Supported Read	CD-DA, CD-ROM (Mode 1 & Mode 2), Red & Yellow Book

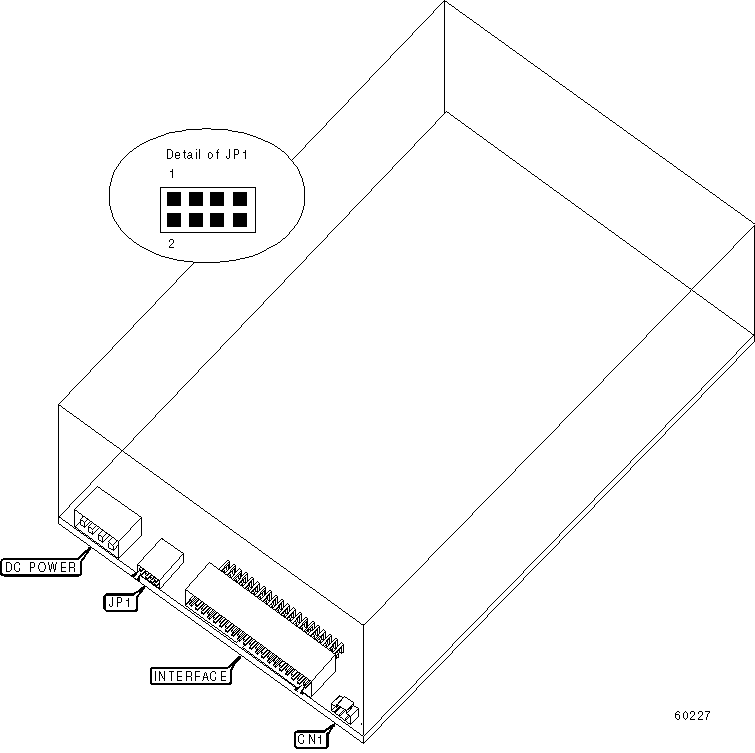

View	Top

CONNECTIONS
Function	Label
CD Audio in	CN1

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter. (Drive number select)	JP1	Pins 1 & 2 closed
