NEC TECHNOLOGIES, INC.
CDR-80
|
Device Type |
CD-ROM |
|
Interface |
SCSI |
|
Spin Rate |
Unidentified |
|
Formats Supported |
Unidentified |
|

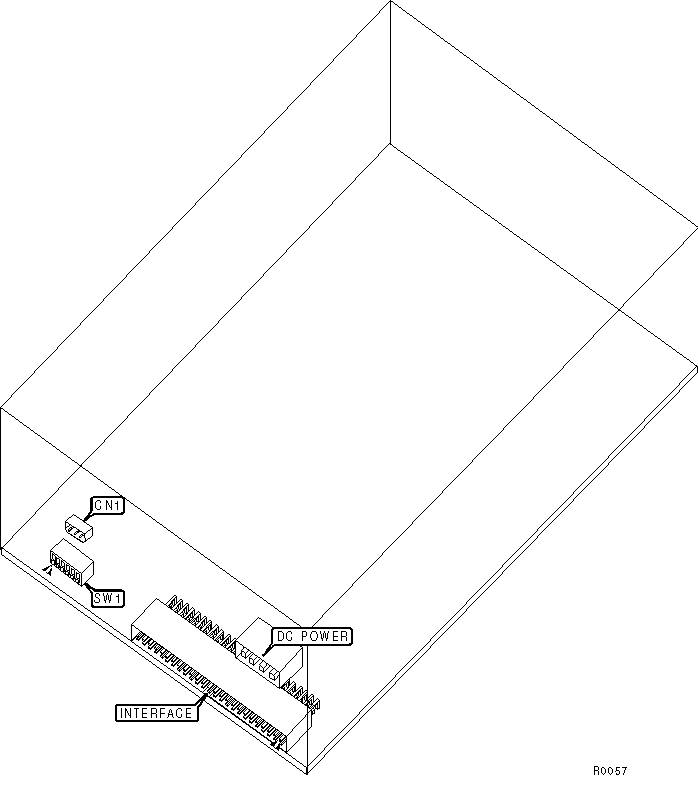

View |
Top |
|
CONNECTIONS | |
|
Function |
Label |
|
Audio line out |
CN1 |
|
USER CONFIGURABLE SETTINGS | |||
|
Setting |
Label |
Position | |
| » |
Parity check enabled |
SW1/4 |
Off |
|
Parity check disabled |
SW1/4 |
On | |
| » |
Arbitration system enable |
SW1/5 |
Off |
|
Arbitration system disable |
SW1/5 |
On | |
|
Factory configured - do not alter |
SW1/6 |
Off | |
|
Note: The exact function of SW1/5 for the systems arbitration use is unidentified. | |||
|
DRIVE SELECT ID | |||
|
Drive ID |
SW1/1 |
SW1/2 |
SW1/3 |
|
0 |
Off |
Off |
Off |
|
1 |
On |
Off |
Off |
|
2 |
Off |
On |
Off |
|
3 |
On |
On |
Off |
|
4 |
Off |
Off |
On |
|
5 |
On |
Off |
On |
|
6 |
Off |
On |
On |
|
7 |
On |
On |
On |
